(37.110.AQ[01]) - VAR - 390911, 743811 - REMOTE CONTROL VALVE - LIFT ARM

Запчасти Case IH MAXXUM 110 (37.110.AQ[01]) - VAR - 390911, 743811 - REMOTE CONTROL VALVE - LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

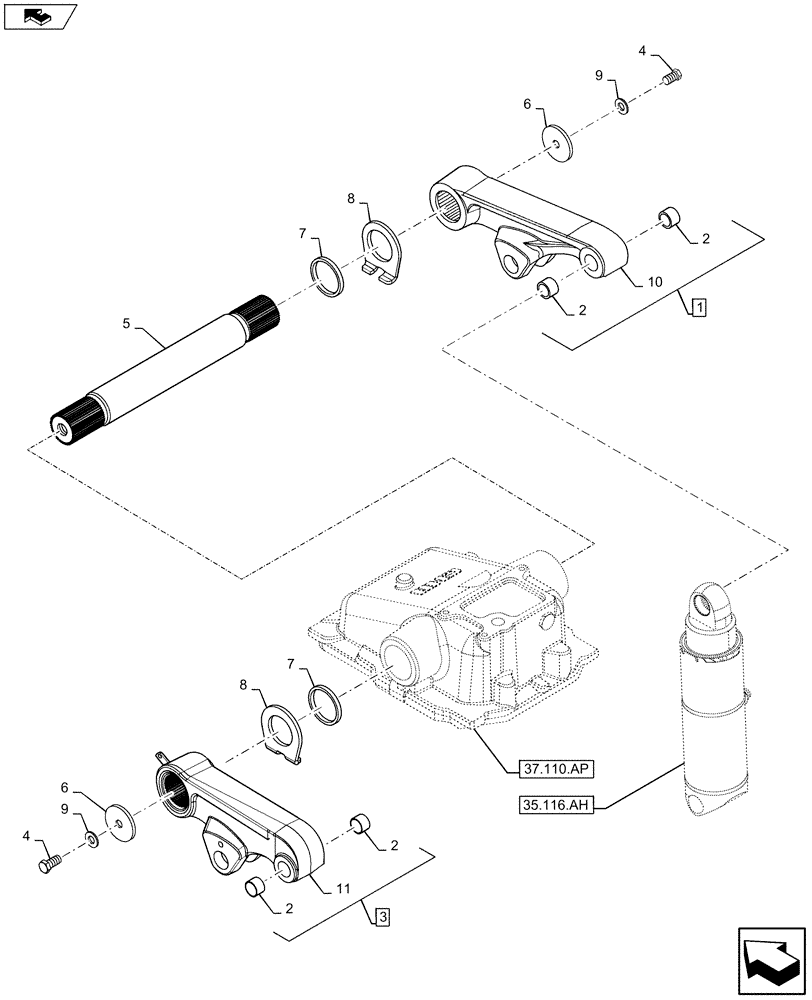

Схема запчастей Case IH MAXXUM 110 - (37.110.AQ[01]) - VAR - 390911, 743811 - REMOTE CONTROL VALVE - LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
9
2
9
6
35.116.ah
2
6
4
7
home
10
2
4
8
8
5
7
3
11
1
37.110.ap
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125530

LIFT ARM

ASSY, RH Incl 2, 10

1шт.

2

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

4шт.

3

47125529

LIFT ARM

ASSY, LH Incl 2, 11

1шт.

4

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

M14X1.5X30 FULL 8.8 DAC DIN

2шт.

5

5188863

ROCKSHAFT,46T, 520mm L

1шт.

6

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

7

5146367

SEAL,60mm ID x 75mm OD x 8.5mm Thk

75X60X8

2шт.

8

84316817

SPACER,60.00mm ID x 95.00mm OD x 6.00mm

2шт.

9

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

15X27X3X3.6 DAC

2шт.

10

NSS

NOT SOLD SEPARAT

Arm, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Arm, Incl in 3

1шт.
