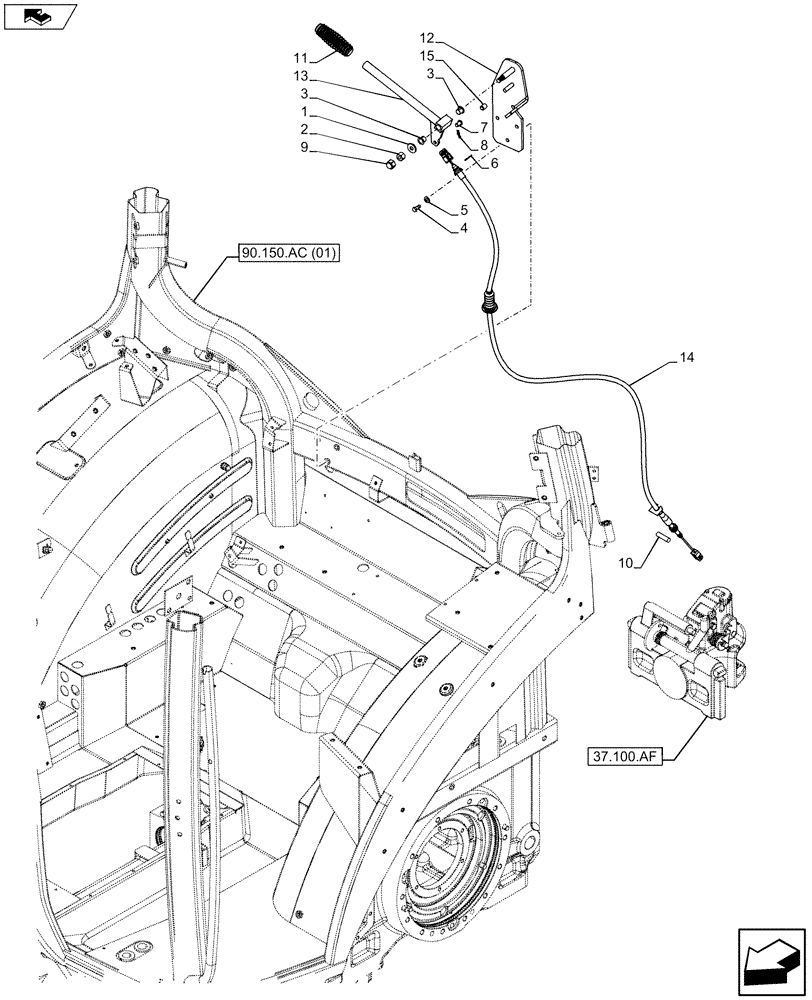

Запчасти Case IH MAXXUM 110 (37.106.AE[01]) - VAR - 331945 - TOW HITCH CONTROL CABLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.

2

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

3

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

4

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

81822628

CIRCLIP,1/2"

1шт.

7

82033370

COTTER PIN,10mm OD

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

1шт.

9

87330882

CAP,End, 23.80mm ID x 25mm L

1шт.

10

83957394

PIN,0.072" x 0.82"

1шт.

11

87666034

HANDLE GRIP

1шт.

12

47439526

BRACKET

1шт.

13

87665892

LEVER

1шт.

14

87307765

CABLE,1650mm L

1шт.

15

87330878

CAP,9.50mm ID x 13.30

1шт.
