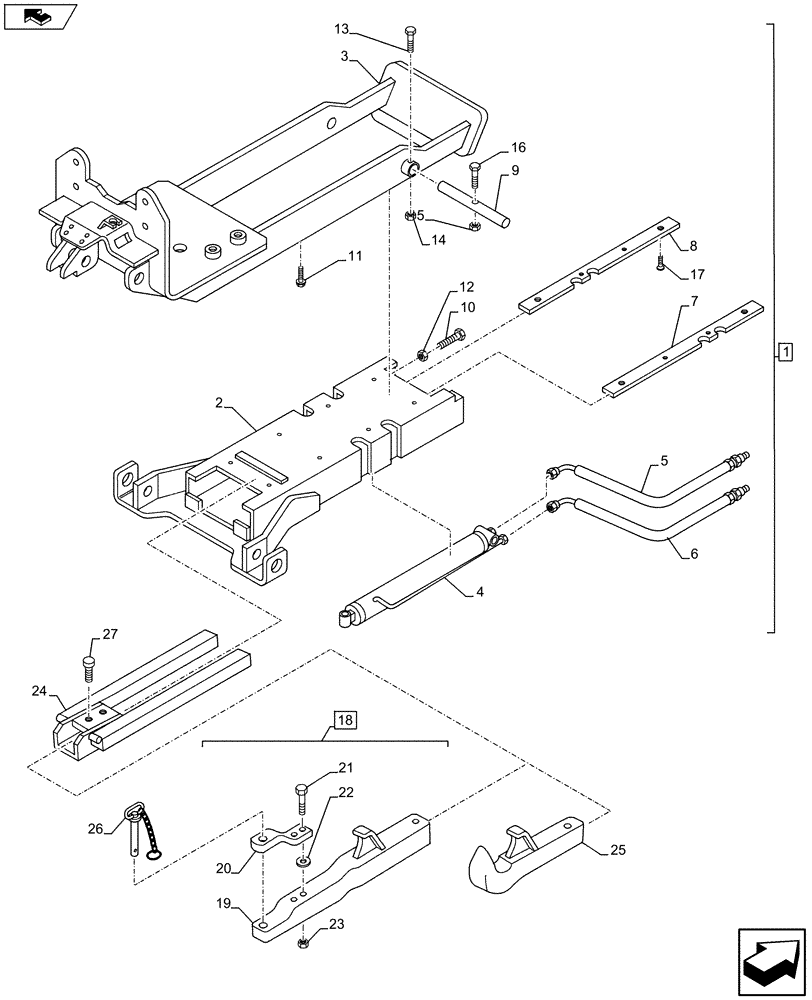

Запчасти Case IH MAXXUM 110 (37.106.AA[01]) - VAR - 331945 - TOW HOOK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87482831

FIXED HITCH

ASSY, Incl 2 - 17, Automatic Pcik Up Hitch

1шт.

2

87482830

HITCH BRACKET

Lower Hanger

1шт.

3

87482832

HITCH BRACKET

Top Hanger

1шт.

4

82036196

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 390mm Stroke

Automatic Pick Up Hitch

1шт.

5

82036628

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

1шт.

6

82036629

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

1шт.

8

82036278

SLIDE GUIDE

LH

2шт.

7

82036279

SLIDE GUIDE,670mm L x 40mm W x 8mm Thk

RH

2шт.

9

82036622

PIN,25mm OD x 287mm L

Front

1шт.

10

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

2шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

87306653

FLANGE BOLT,Hex, M16 x 1.5 x 140mm, Gr 12.9

4шт.

12

82038798

NUT,Hex, M8, 1.25mm Pitch, 8.00mm High, G8, ZND

8шт.

13

16040731

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd

2шт.

14

16104131

NUT,Hex, M8, 1.25mm Pitch

2шт.

15

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

16

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

17

10356321

SCREW,Sl Csk, M8 x 20mm, Cl 8.8

8шт.

18

87731771

DRAWBAR

ASSY, Incl 19 - 23, Automatic Pcik Up Hitch

1шт.

19

87731775

DRAWBAR,672mm L x 70mm W x 60mm Thk, 15mm Offset

Automatic Pcik Up Hitch

1шт.

20

82036534

BAR,251mm L x 60mm W x 30mm Thk, 50.8mm Offset

Automatic Pcik Up Hitch

1шт.

21

15985434

BOLT,M18 x 1.5 x 110mm

2шт.

22

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

23

10721034

NUT,M18 x 1.5

M18X1.5 18 HT 12 DAC

2шт.

24

87476076

DRAWBAR FRAME

Frame, Cassette Automatic Pick Up Hitch

1шт.

25

87731770

DRAW HOOK

Yellow

1шт.

26

82025933

PIN,32mm OD x 180mm L

ASSY

1шт.

27

82036199

PIN,30mm OD x 87mm L

Automatic Pick Up Hitch

2шт.
