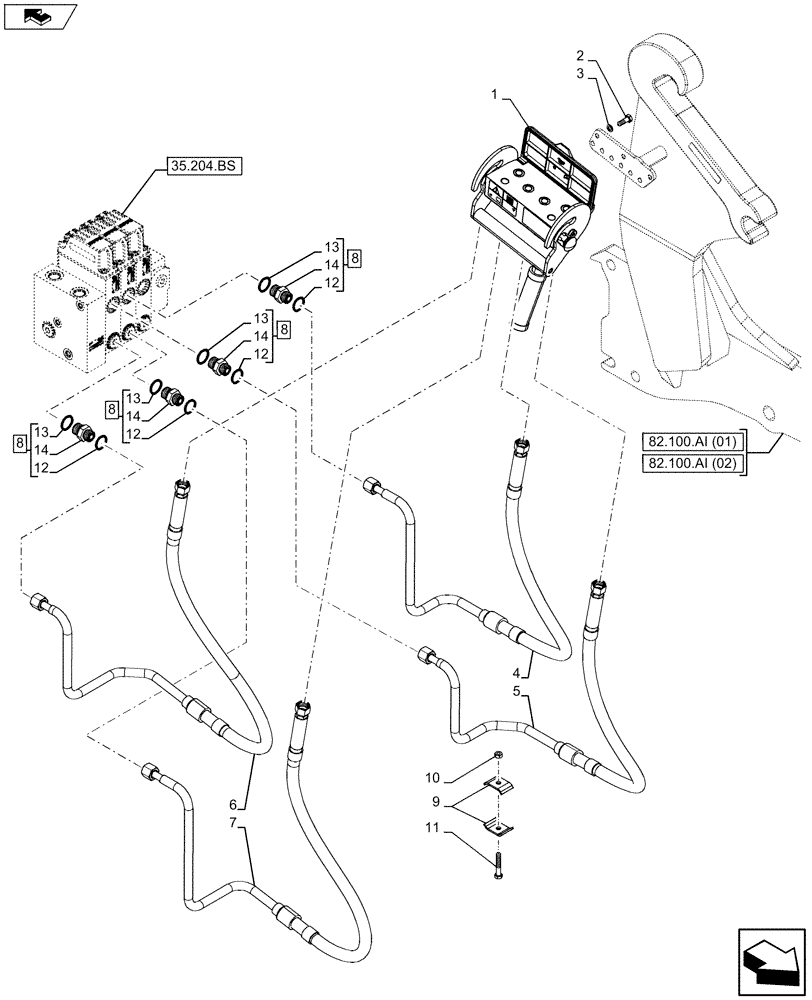

Запчасти Case IH MAXXUM 110 (35.701.AD[02]) - VAR - 743702 - LOADER, QUICK COUPLER, FITTING (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

1шт.

2

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

2шт.

4

84473528

PIPE

Loader Crowd

1шт.

5

84474006

HYD TUBE

Loader Tip

1шт.

6

84487861

HYD TUBE

Loader Lower

1шт.

7

84473519

HYDRAULIC HOSE

Loader Raise

1шт.

8

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Assy, Incl 12 - 14

4шт.

9

47057074

CLAMP,48.6mm x 30mm

2шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

4шт.
