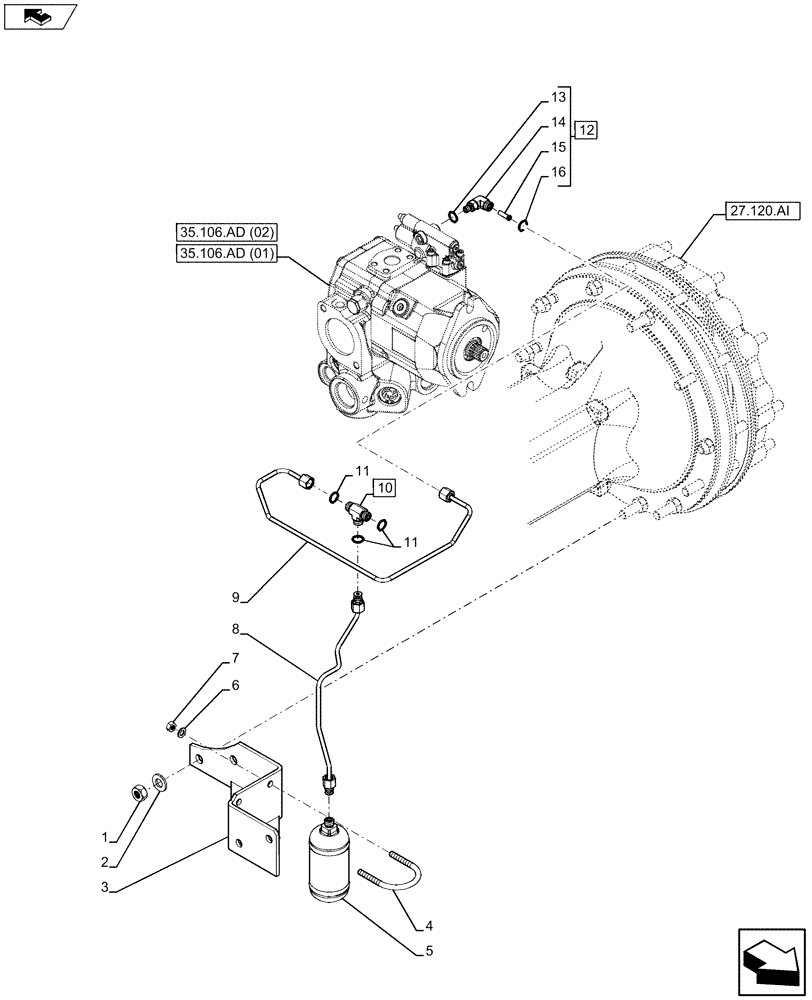

Запчасти Case IH MAXXUM 110 (35.300.AN[02]) - VAR - 332351, 391223 - OIL FILTER, PRIORITY VALVE (35) - HYDRAULIC SYSTEMS

1

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

2шт.

2

13550624

WASHER,14.4mm ID x 28mm OD x 3mm Thk

2шт.

3

84576297

BRACKET

1шт.

4

84152220

U-BOLT,M8 x 2, ZND

1шт.

5

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

84576710

TUBE

To Resonator

1шт.

9

84382523

HYD TUBE

LS Priority Valve

1шт.

10

9840568

TEE,9/16"-18 ORFS

ASSY, Incl 11

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

ASSY, Incl 13 - 16

1шт.

13

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

14

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

1шт.

15

47126655

FILTER STRAINER

1шт.

16

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.
