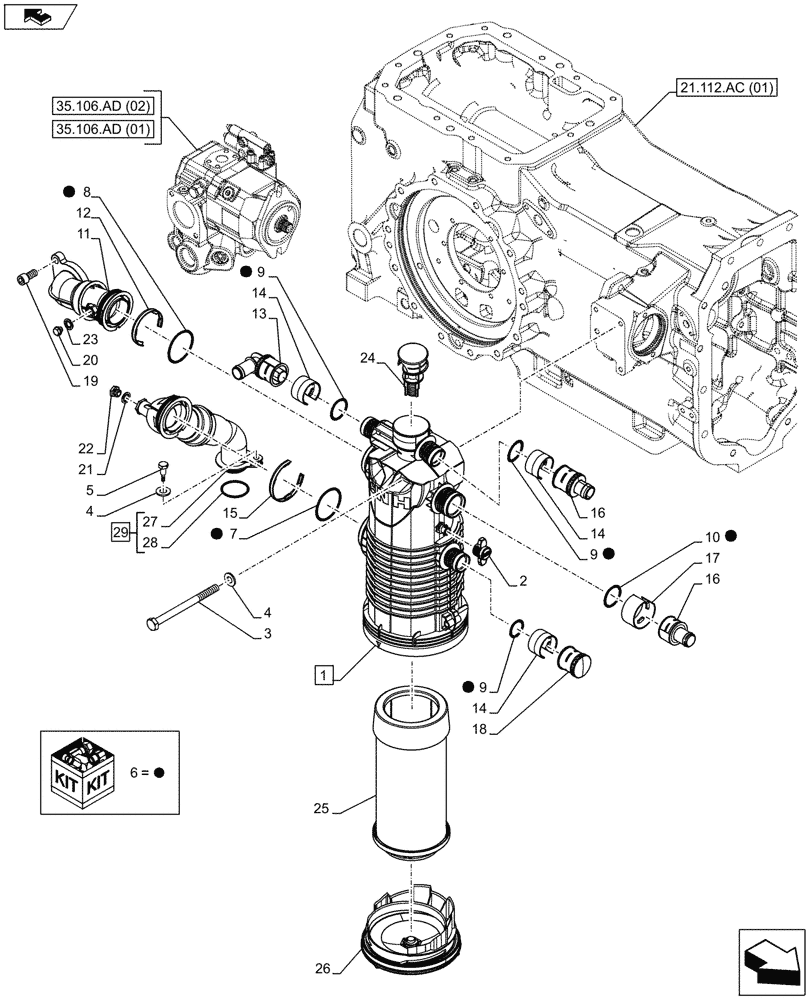

Запчасти Case IH MAXXUM 110 (35.300.AN[01]) - VAR -332351, 390560, 391223, 743689, 743690 - OIL FILTER (35) - HYDRAULIC SYSTEMS

1

84242244

FILTER ASSY

Incl 2, 24, 25, 26

1шт.

2

87705160

ARRESTER

1шт.

3

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

5

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

6

87705156

SEAL KIT

ASSY, Incl 7 - 10

1шт.

7

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

8

87705160

ARRESTER

1шт.

9

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

10

14464081

O-RING,50.39mm ID x 3.53" Width

1шт.

11

87656066

SUCTION PIPE

1шт.

12

87381696

SNAP RING,8mm Thk, Ext

1шт.

13

87608358

ELBOW,90 Deg, 22mm ID

1шт.

14

84121298

SNAP RING,30mm Thk, Ext

3шт.

15

87381695

CIRCLIP,8mm Thk

1шт.

16

87381694

HYD CONNECTOR,21mm D x 22mm D

2шт.

17

87330755

STOP DEVICE

1шт.

18

87330798

PLUG,46mm ID

Without MMV

1шт.

19

14311024

HEX SOC SCREW,M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

20

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

21

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

22

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

23

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

24

84244473

CHECK VALVE

1шт.

25

87708150

HYDRAULIC OIL FILTER,Filter & Seal

1шт.

26

87705159

FILTER COVER

1шт.

27

NSS

NOT SOLD SEPARAT

Pipe, Incl in 29

1шт.

28

47715395

SEAL KIT

1шт.

29

84177407

PIPE

Oil Sump to Filter, ASSY, Incl 27, 28

1шт.
