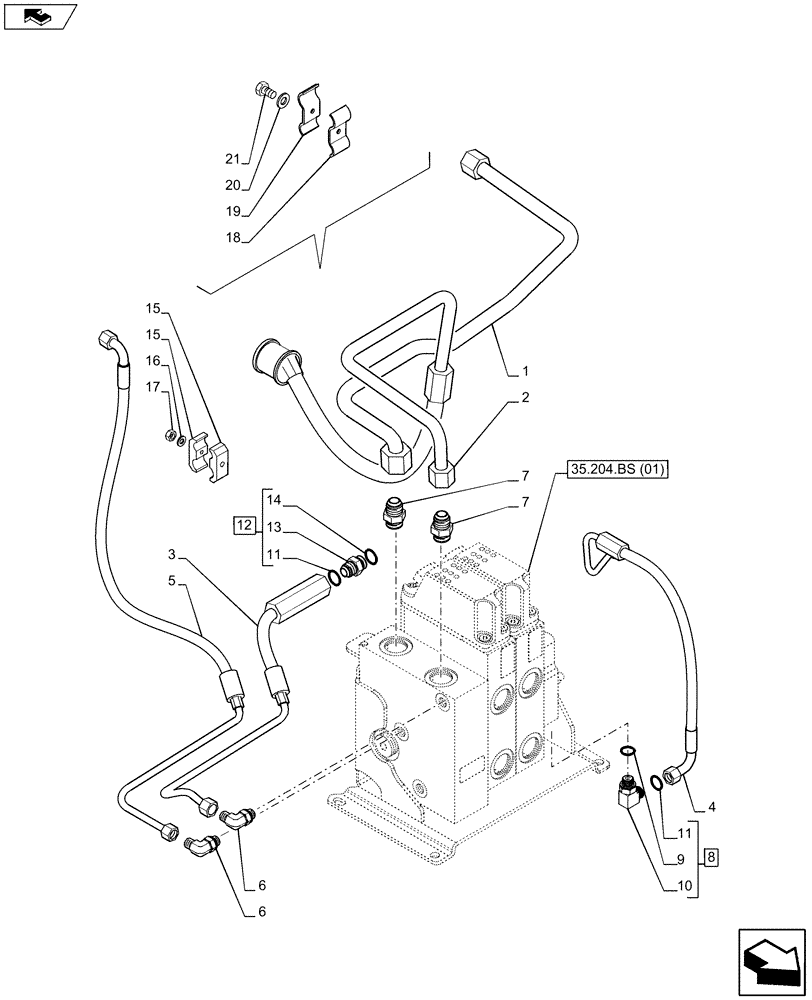

Запчасти Case IH MAXXUM 110 (35.204.BS[05]) - VAR - 330560, 333560, 743689 - 2 ELECTRONIC MID MOUNTED VALVES (35) - HYDRAULIC SYSTEMS

1

47516851

TUBE

MMV Feeding

1шт.

2

84599546

PIPE

Discharge MMV

1шт.

3

47538328

HYD TUBE

Discharge Servo MMV

1шт.

4

84582653

HYDRAULIC HOSE

Supply Servo MMV

1шт.

5

47478010

HYD TUBE

Load Sensing MMV

1шт.

6

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

2шт.

7

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

8

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 9-11 (Q.ty 1)

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 8

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 11 (Q.ty 1), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 12

1шт.

14

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

15

47453770

BRACKET

2шт.

16

12637801

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

17

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

18

5180016

BRACKET

1шт.

19

5180153

BRACKET

1шт.

20

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.
