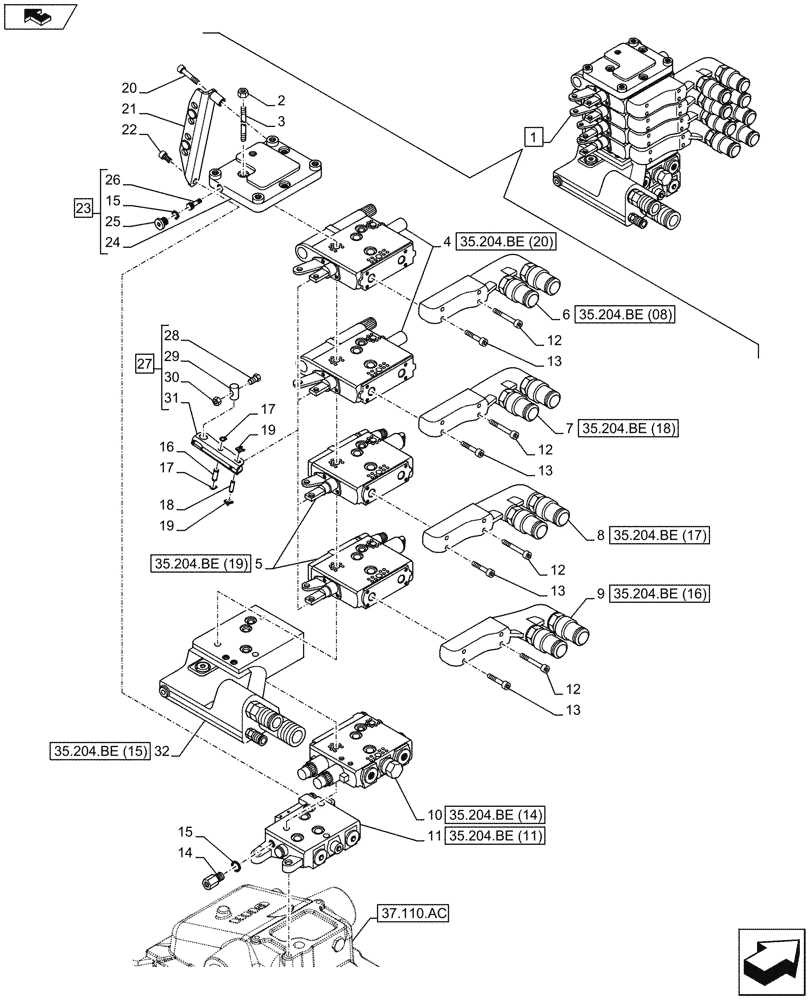

Запчасти Case IH MAXXUM 110 (35.204.BE[21]) - VAR - 336845, 743685 - REMOTE CONTROL VALVE, MECHANICAL, W/ POWER BEYOND (2NC+2C) (35) - HYDRAULIC SYSTEMS

1

84146796

CONTROL VALVE

ASSY, Incl 2 - 14, 15 (Qty 1), 32

1шт.

2

5195169

NUT,M8

M8

3шт.

3

84150182

THREADED TIE-ROD,291mm L

M8

3шт.

4

87546169

CONTROL VALVE

2шт.

5

87328572

HYD VALVE SECTION

2шт.

6

87381965

QUICK MALE COUPLING

Manifold, 4th Element

1шт.

7

87381964

QUICK MALE COUPLING

Manifold, 3rd Element

1шт.

8

87381963

QUICK MALE COUPLING

Manifold, 2nd Element

1шт.

9

87381958

QUICK MALE COUPLING

Manifold, 1st Element

1шт.

10

84175671

VALVE SECTION

1шт.

11

84142195

HYD VALVE SECTION

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

8шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

2шт.

16

5113008

PIN,8mm OD x 26mm L

4шт.

17

11065676

SNAP RING,M8, Ext

8шт.

18

5193177

PIN,6mm OD x 29.48mm L

4шт.

19

11063971

SPRING CLIP,M6

8шт.

20

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

21

84496553

BRACKET

1шт.

22

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

23

5192188

BODY

ASSY, Incl 15 (Qty 1), 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Body, Incl in 23

1шт.

25

47129435

PLUG

1шт.

26

47129441

VALVE

1шт.

27

87358094

LEVER

ASSY, Incl 28 - 31

4шт.

28

NSS

NOT SOLD SEPARAT

Cable Retaining, Incl in 27

1шт.

29

5192622

HYDRAULIC CYLINDER,10mm ID

1шт.

30

NSS

NOT SOLD SEPARAT

Nut, Incl in 27

1шт.

31

NSS

NOT SOLD SEPARAT

Body, Incl in 27

1шт.

32

84146807

HYD VALVE SECTION

1шт.
