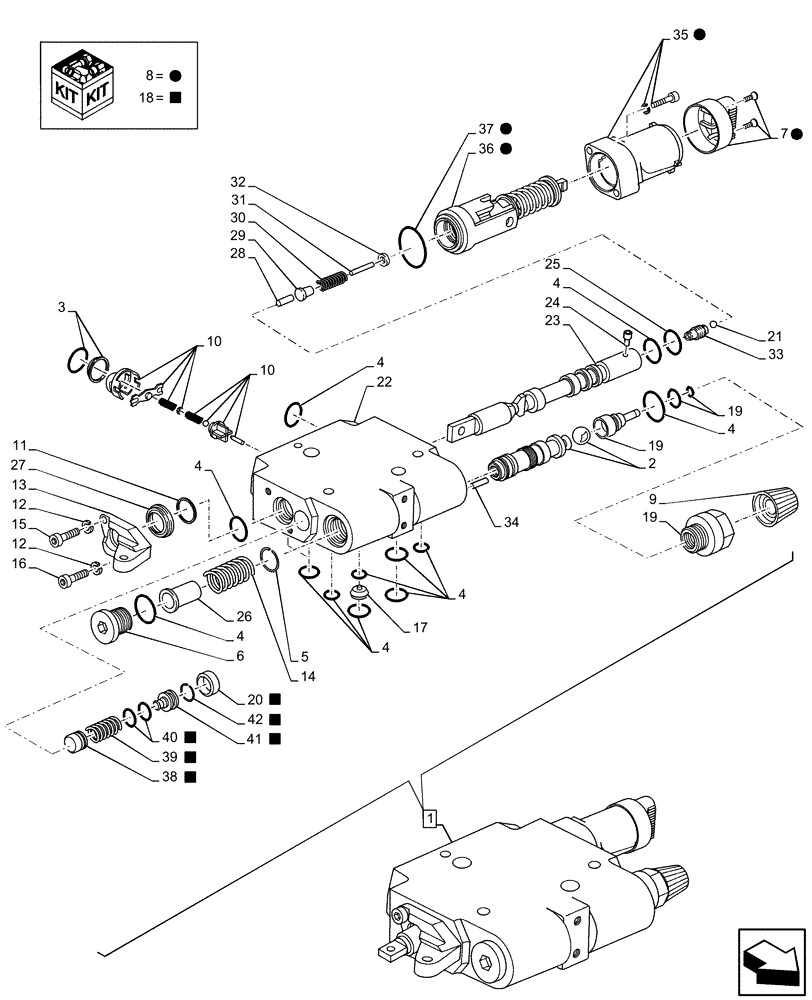

Запчасти Case IH MAXXUM 110 (35.204.BE[19]) - VAR - 396844, 743685 - REMOTE CONTROL VALVE, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87328572

HYD VALVE SECTION

ASSY, Incl 2 - 42

1шт.

2

87394197

REPAIR KIT

1шт.

3

84125422

SEAL KIT

1шт.

4

87661337

KIT

1шт.

5

47129463

RETAINER

1шт.

6

47129438

PLUG

1шт.

7

87531920

KNOB

1шт.

8

87531919

REPAIR KIT

Incl 7, 35 - 37

1шт.

9

87319988

KNOB

1шт.

10

5191720

REPAIR KIT

1шт.

11

47129452

DISC

1шт.

12

5191783

SPRING WASHER

2шт.

13

47129458

SUPPORT

1шт.

14

84124585

SPRING

1шт.

15

14305721

SERRATED SCREW,M6 x 14mm, Cl 8.8

1шт.

16

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

1шт.

17

47127006

VALVE

1шт.

18

87666211

SERVICE KIT

Incl 20, 38 - 42

1шт.

19

47130767

KIT

1шт.

20

5191775

PLUG

1шт.

21

84127133

BALL

1шт.

22

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Disc, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Scraper Ring, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Spring Seat, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Needle Roller, Incl in 1

1шт.

32

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Valve Insert, Incl in 1

1шт.

34

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

35

NSS

NOT SOLD SEPARAT

Cover, Incl in 8

1шт.

36

NSS

NOT SOLD SEPARAT

Spool, Incl in 8

1шт.

37

NSS

NOT SOLD SEPARAT

O-ring, Incl in 8

1шт.

38

NSS

NOT SOLD SEPARAT

Valve Cone, Incl in 18

1шт.

39

NSS

NOT SOLD SEPARAT

Spring, Incl in 18

1шт.

40

NSS

NOT SOLD SEPARAT

O-ring, Incl in 18

2шт.

41

NSS

NOT SOLD SEPARAT

Spring Seat, Incl in 18

1шт.

42

NSS

NOT SOLD SEPARAT

Retainer, Incl in 18

1шт.
