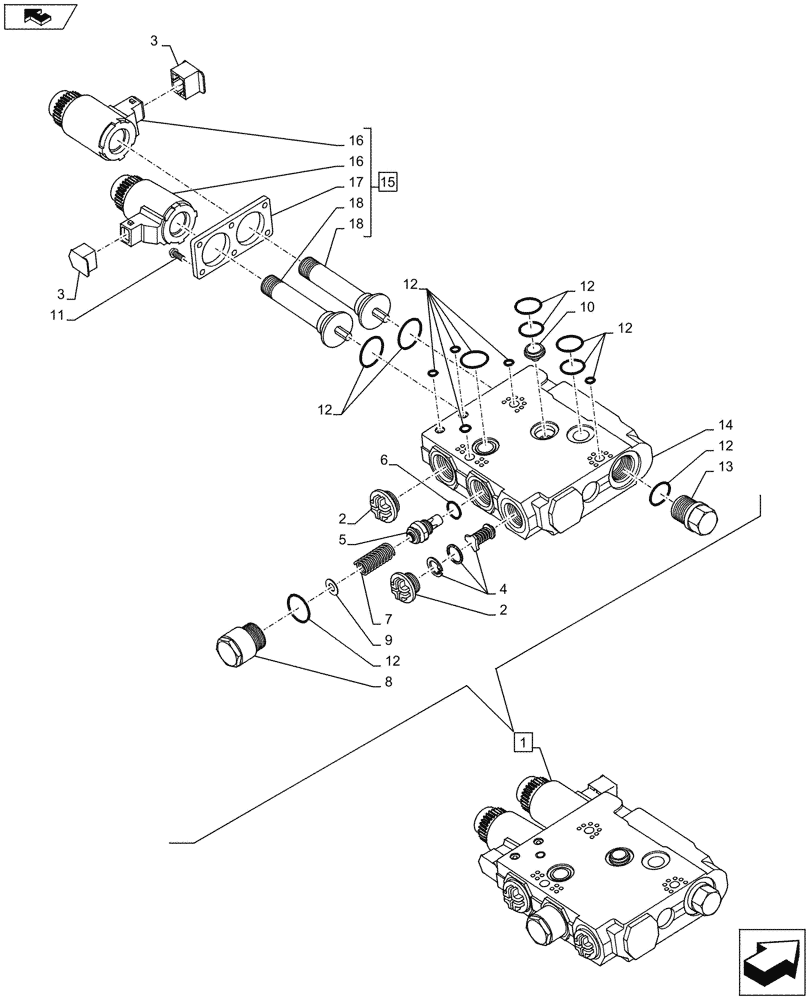

Запчасти Case IH MAXXUM 110 (35.204.BE[14]) - VAR - 396844, 743685, 743686, 743733 - REMOTE CONTROL VALVE, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84175671

VALVE SECTION

ASSY, Incl 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

2шт.

3

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

2шт.

4

84232107

REPAIR KIT

1шт.

5

47129415

INSERT

1шт.

6

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

7

47129411

SPRING

1шт.

8

47129410

PLUG,Hex, 29.2mm OD

1шт.

9

47129416

SHIM,0.80mm T

1шт.

9

47129406

SHIM,0.30mm T

1шт.

9

47129407

SHIM,0.40mm T

1шт.

10

84127100

SHUT-OFF VALVE

1шт.

11

47129409

SET SCREW,Oval Head

Oval-Head

6шт.

12

84312718

SEAL KIT

1шт.

13

87531487

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

15

84270220

SOLENOID,3.35A

ASSY, Incl 16 - 18

1шт.

16

5190768

COIL ASSY.

2шт.

17

NSS

NOT SOLD SEPARAT

Pressure Tube, Incl in 15

2шт.

18

NSS

NOT SOLD SEPARAT

Fastening Flange, Incl in 15

1шт.
