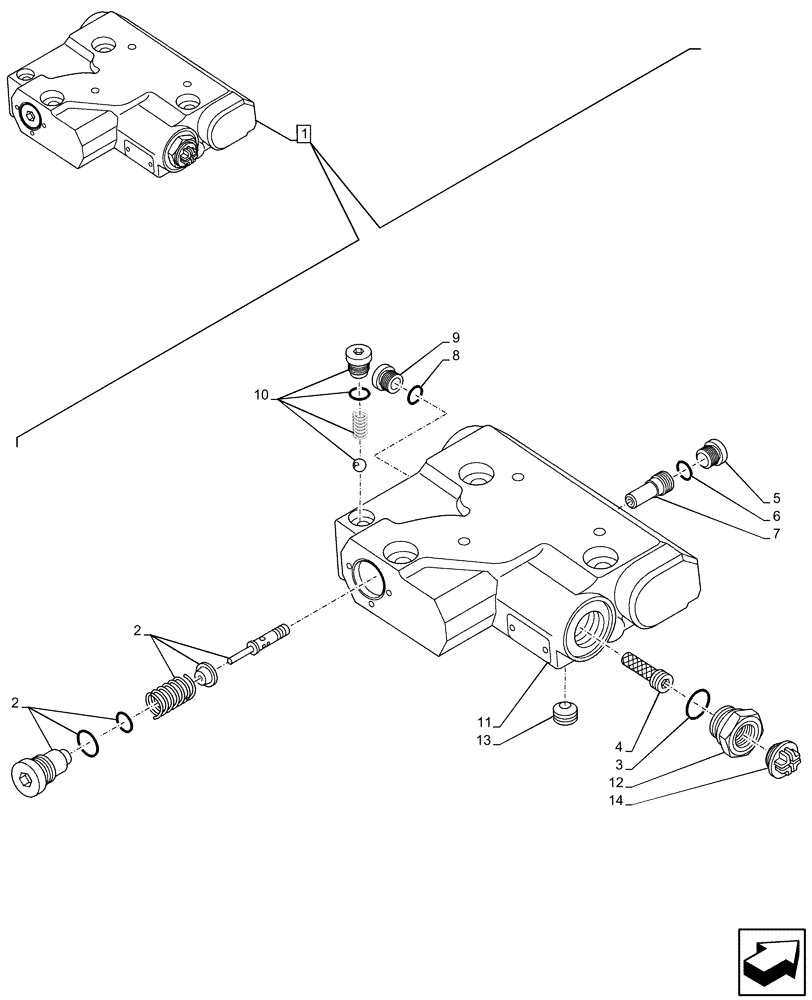

Запчасти Case IH MAXXUM 110 (35.204.BE[13]) - VAR - 743686, 743690, 743733 - REMOTE CONTROL VALVE, REAR, END PLATE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230200

HYD VALVE SECTION

ASSY, Incl 2 - 14

1шт.

2

84230505

KIT

1шт.

3

47129433

O-RING

19.4 x 2.1mm

1шт.

4

47129436

FILTER

1шт.

5

47129441

VALVE

1шт.

6

47129432

O-RING

9.3 x 2.4mm

1шт.

7

47129435

PLUG

1шт.

8

47129434

O-RING

11.4 x 2.1mm

1шт.

9

47129439

SCREW

1шт.

10

47129440

REPAIR KIT

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Reducing Fitting, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Closure Cap, Incl in 1, M14 x 1.5mm

1шт.
