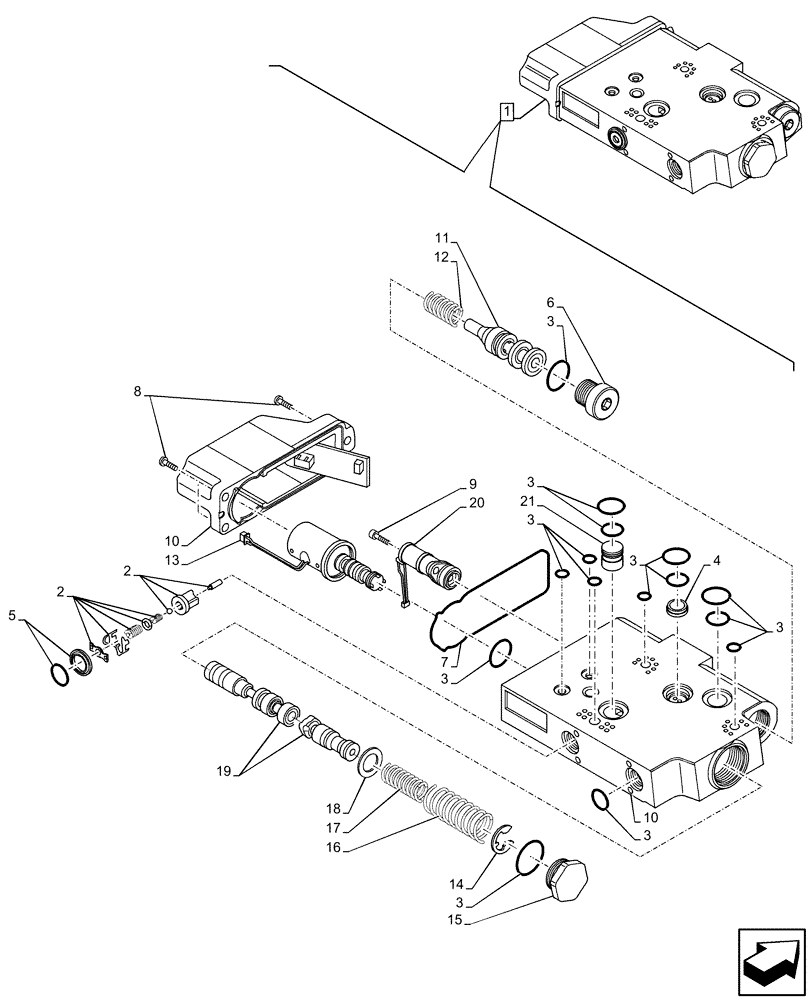

Запчасти Case IH MAXXUM 110 (35.204.BE[12]) - VAR - 743686, 743733 - REMOTE CONTROL VALVE, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230181

HYD VALVE SECTION

ASSY, Incl 2 - 21

1шт.

2

84270832

KIT

1шт.

3

84270830

SEAL KIT

1шт.

4

84279974

VALVE POPPET

1шт.

5

84125422

SEAL KIT

1шт.

6

47129438

PLUG

1шт.

7

84270831

SEAL KIT

1шт.

8

84340200

SCREW,Phillips Drive, Pan HD, M5 x 18mm, Cl 10.9

M5 x 18

3шт.

9

14304631

HEX SOC SCREW,M5 x 14mm, Cl 10.9, Full Thd

2шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Strainer, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Locking Washer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring Disk, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.
