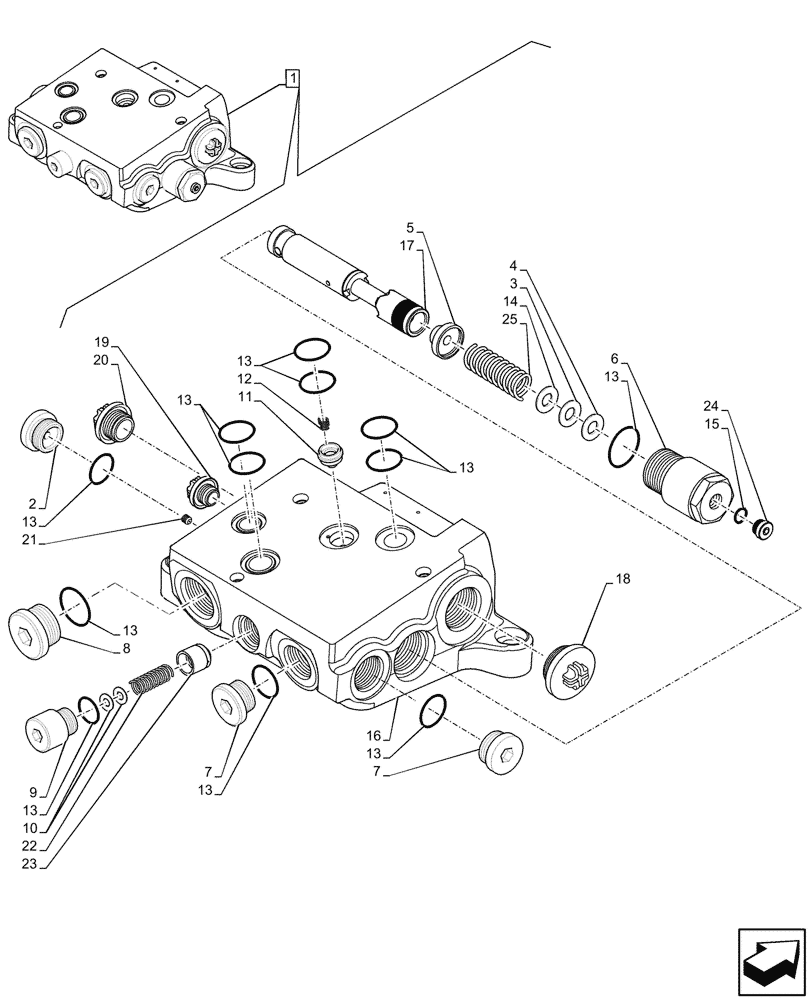

Запчасти Case IH MAXXUM 110 (35.204.BE[11]) - VAR - 396844, 743685, 743686, 743733 - REMOTE CONTROL VALVE, REAR, PLATE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84142195

HYD VALVE SECTION

ASSY, Incl 2 - 25

1шт.

2

47129472

PLUG

1шт.

3

84127098

WASHER

1шт.

4

84127099

SHIM,12.10mm ID x 20.00mm OD x 0.10

1шт.

5

47126924

SPRING SEAT

1шт.

6

84152095

PLUG

1шт.

7

47129438

PLUG

2шт.

8

47129449

PLUG,M27 x 2 x 19mm L

1шт.

9

47129465

PLUG

1шт.

10

47126929

SHIM,6.50mm ID x 11.50mm OD x 0.50mm

1шт.

10

47126930

SHIM,6.50mm ID x 11.50mm OD x 0.10mm

1шт.

11

5191716

VALVE

1шт.

12

47129466

SPRING

1шт.

13

47129468

SEAL KIT

1шт.

14

84127069

SHIM

1шт.

15

14452786

O-RING

.07 x .239

1шт.

16

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Cap, Incl in 1, M12 x 1.5

1шт.

20

NSS

NOT SOLD SEPARAT

Cap, Incl in 1, M18 x 1.5

1шт.

21

NSS

NOT SOLD SEPARAT

Throttle Screw, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Valve Cone, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
