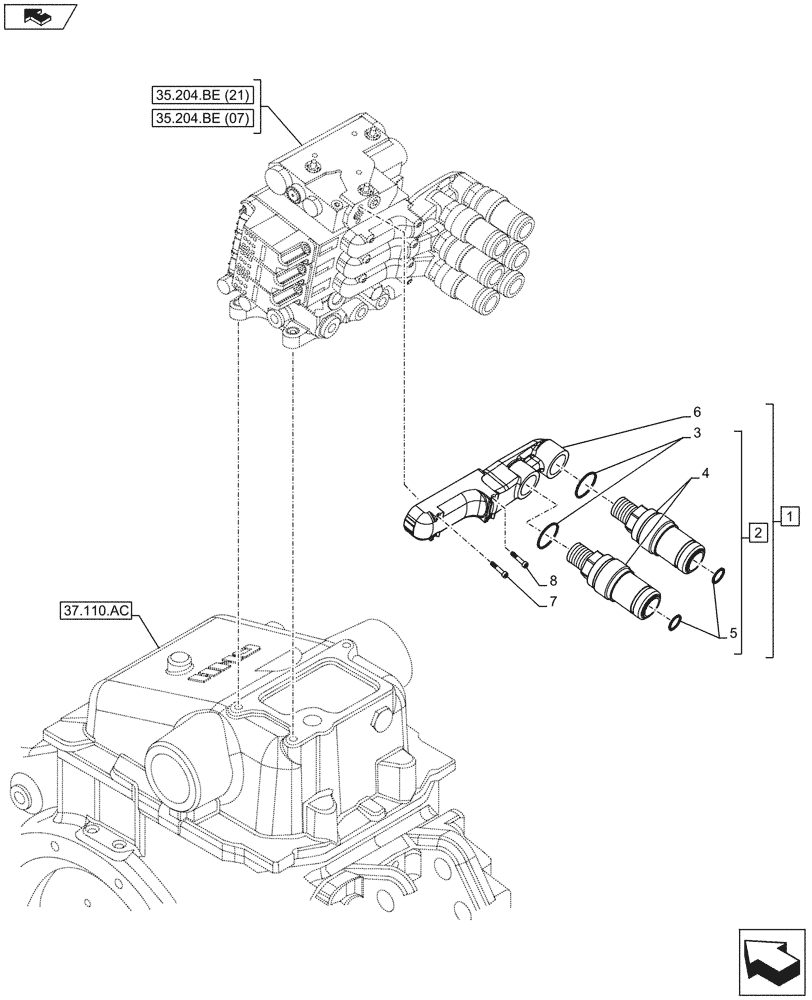

Запчасти Case IH MAXXUM 110 (35.204.BE[08]) - VAR - 396844, 743685, 743733 - MANIFOLD, QUICK COUPLER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87381965

QUICK MALE COUPLING

ASSY, Incl 2 - 6

1шт.

2

47370116

COUPLING

ASSY, Incl 3 (Qty 1), 4, 5 (Qty 1)

2шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 2

2шт.

5

87382012

SEAL KIT

2шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

7

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

Only without Power Beyond Couplers

1шт.

8

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

Only without Power Beyond Couplers

1шт.
