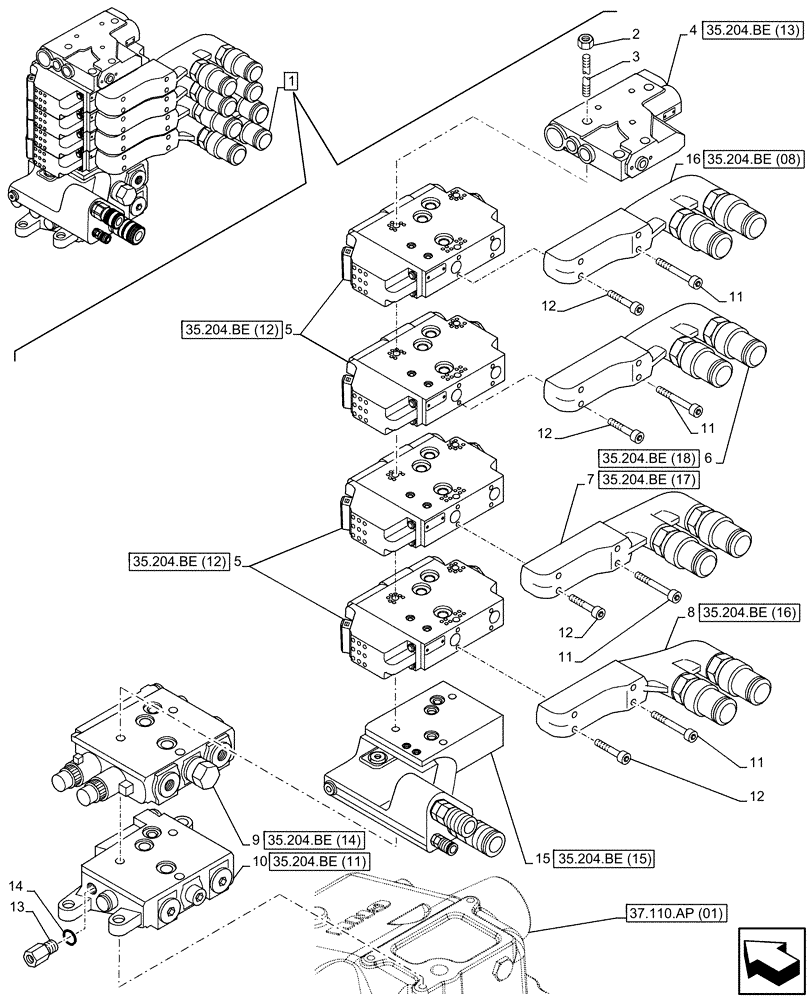

Запчасти Case IH MAXXUM 110 (35.204.BE[07]) - VAR - 332855, 332862, 743733 - REMOTE CONTROL VALVE, REAR (35) - HYDRAULIC SYSTEMS

1

84230146

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

2

5195169

NUT,M8

3шт.

3

84151304

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

4шт.

6

87381964

QUICK MALE COUPLING

Manifold, 3rd Element

1шт.

7

87381963

QUICK MALE COUPLING

Manifold, 2nd Element

1шт.

8

87381958

QUICK MALE COUPLING

Manifold, 1st Element

1шт.

9

84175671

VALVE SECTION

1шт.

10

84142195

HYD VALVE SECTION

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

8шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

8шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.

15

84146807

HYD VALVE SECTION

1шт.

16

87381965

QUICK MALE COUPLING

Manifold, 4th Element

1шт.
