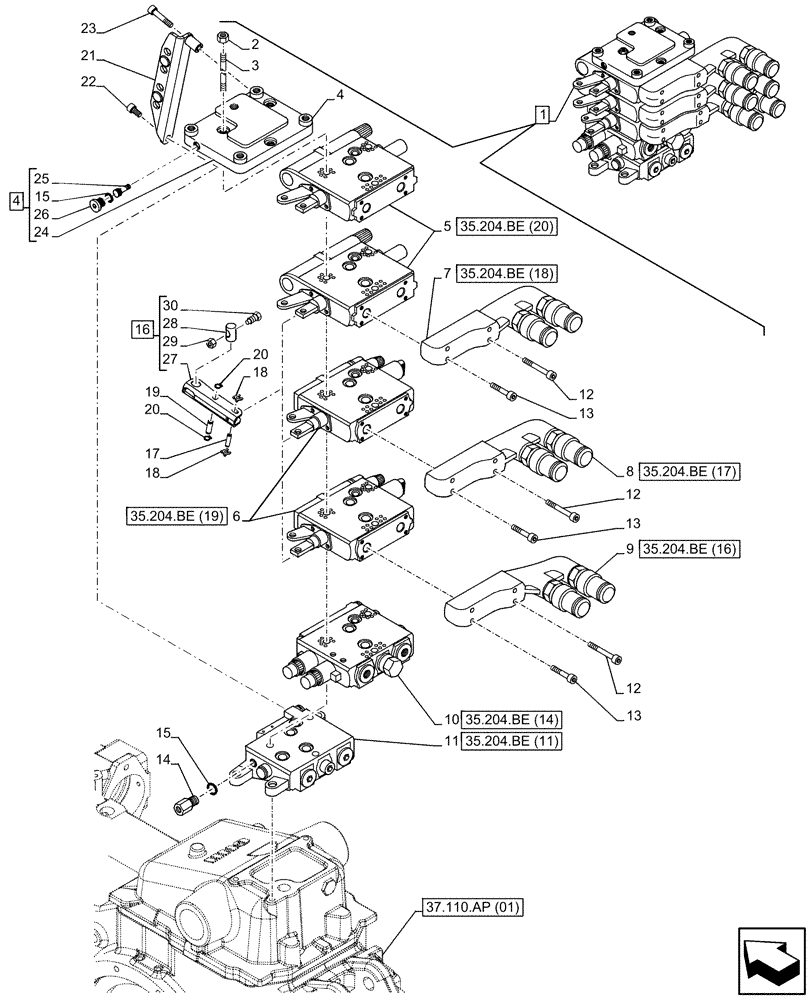

Запчасти Case IH MAXXUM 110 (35.204.BE[03]) - VAR - 333845, 743685 - REMOTE CONTROL VALVE, MECHANICAL (2NC+2C) (35) - HYDRAULIC SYSTEMS

1

84142641

CONTROL VALVE

ASSY, Incl 2 - 15 (Q.ty 1)

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

3шт.

4

5192188

BODY

ASSY, Incl 15 (Q.ty 1), 24 - 26

1шт.

5

87546169

CONTROL VALVE

2шт.

6

87328572

HYD VALVE SECTION

2шт.

7

87381964

QUICK MALE COUPLING

Manifold, 3rd Element

1шт.

8

87381963

QUICK MALE COUPLING

Manifold, 2nd Element

1шт.

9

87381958

QUICK MALE COUPLING

Manifold, 1st Element

1шт.

10

84175671

VALVE SECTION

1шт.

11

84142195

HYD VALVE SECTION

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

6шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

2шт.

16

87358094

LEVER

ASSY, Incl 27 - 30

4шт.

17

5193177

PIN,6mm OD x 29.48mm L

4шт.

18

11063971

SPRING CLIP,M6

8шт.

19

5113008

PIN,8mm OD x 26mm L

4шт.

20

11065676

SNAP RING,M8, Ext

8шт.

21

84486546

BRACKET

1шт.

22

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

23

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

24

NSS

NOT SOLD SEPARAT

Body, Incl in 4

1шт.

25

47129441

VALVE

1шт.

26

47129435

PLUG

1шт.

27

NSS

NOT SOLD SEPARAT

Body, Incl in 16

1шт.

28

5192622

HYDRAULIC CYLINDER,10mm ID

1шт.

29

NSS

NOT SOLD SEPARAT

Nut, Incl in 16, M10 x 1

1шт.

30

NSS

NOT SOLD SEPARAT

Cable Retaining, Incl in 16

1шт.
