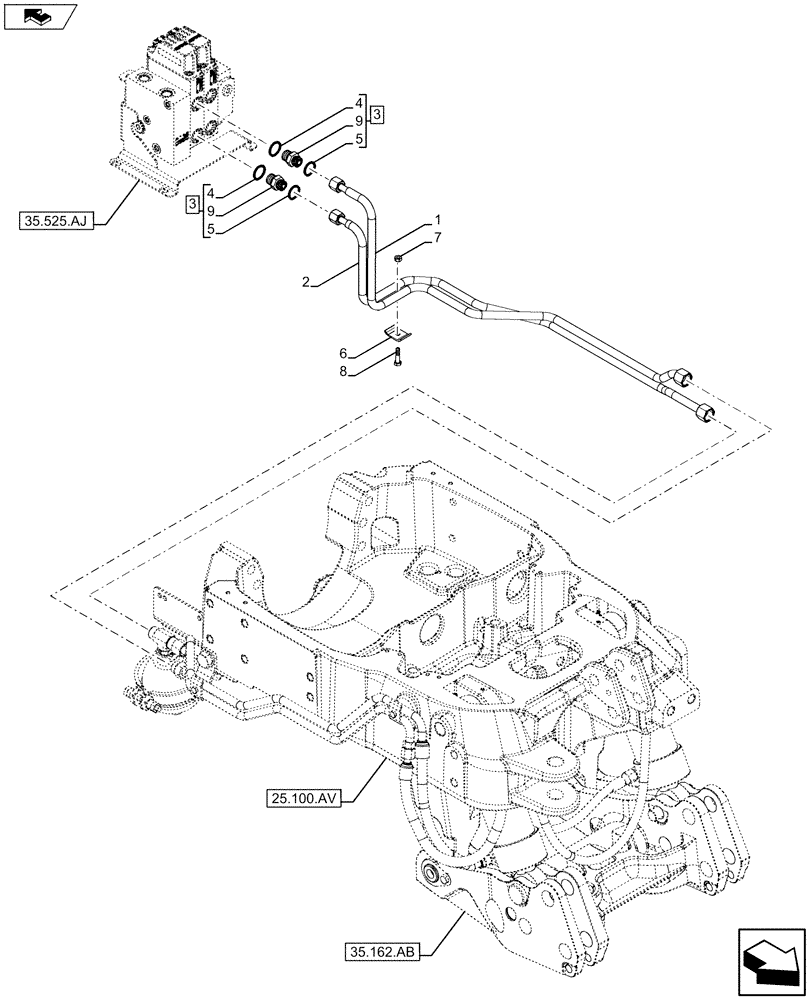

Запчасти Case IH MAXXUM 110 (35.162.AG) - VAR - 332355, 332926 - CYLINDER SUPPLY LINES (35) - HYDRAULIC SYSTEMS

1

84516553

TUBE

1шт.

2

84516556

TUBE

1шт.

3

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 4, 5, 9

2шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2.2W X 19.3 ID MM CL 6 GREEN

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.07X.489 14 6

1шт.

6

47057074

CLAMP,48.6mm x 30mm

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

16043934

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

M8X35 FULL 10.9 DAC

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, STR -8 ORFS X M22 X 1.5 ORB, Incl in 3

2шт.
