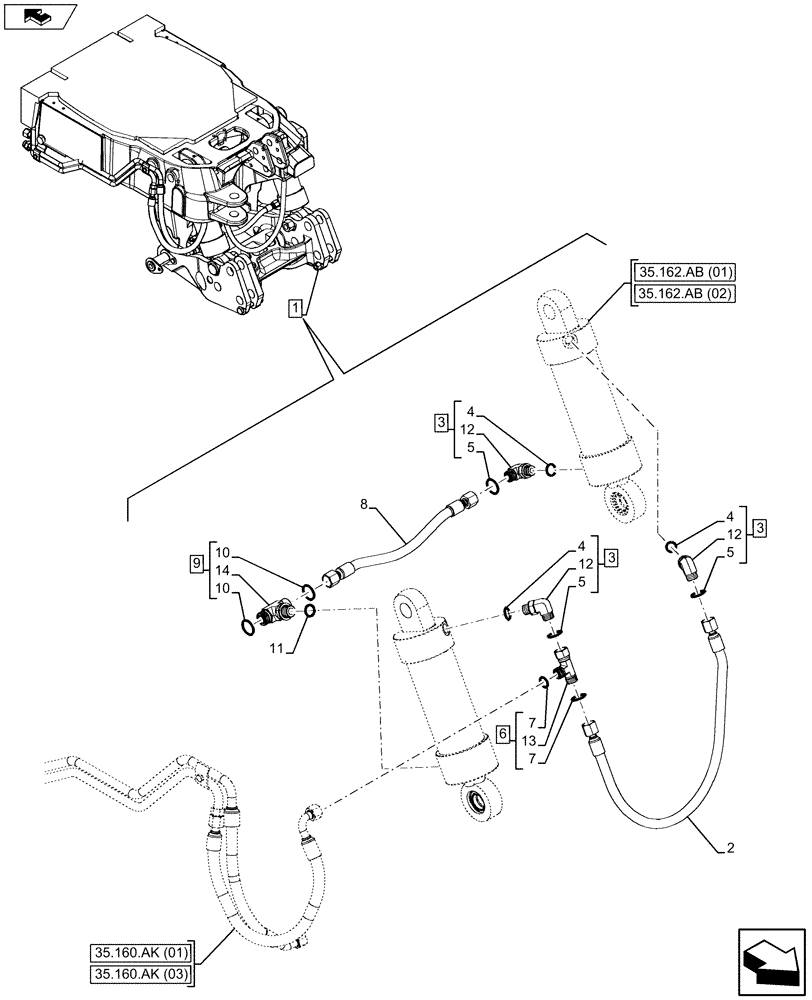

Запчасти Case IH MAXXUM 110 (35.160.AK[04]) - VAR - 334648, 335831, 337831, 743699, 743700 - HYDRAULIC LIFT, PIPE (35) - HYDRAULIC SYSTEMS

1

87563272

HITCH

ASSY, Incl 2 - 11

1шт.

See Hitch Assy Components also in Figures 35.160.AK (03), 35.162.AB (02), 55.160.AP (01)

1шт.

2

47399301

FLEXIBLE HOSE,10mm ID x 750mm L

1шт.

3

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 4 - 5, 12

3шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

5194079

TEE

ASSY, Incl 7, 6

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

8

47057656

FLEXIBLE HOSE,Hyd, 10mm ID x 375mm L

1шт.

9

47057673

TEE

ASSY, Incl 10 - 11

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.
