Запчасти Case IH MAXXUM 110 (35.160.AK[01]) - VAR - 333648, 336831, 743699, 743700 - HYDRAULIC LIFT, PIPE, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

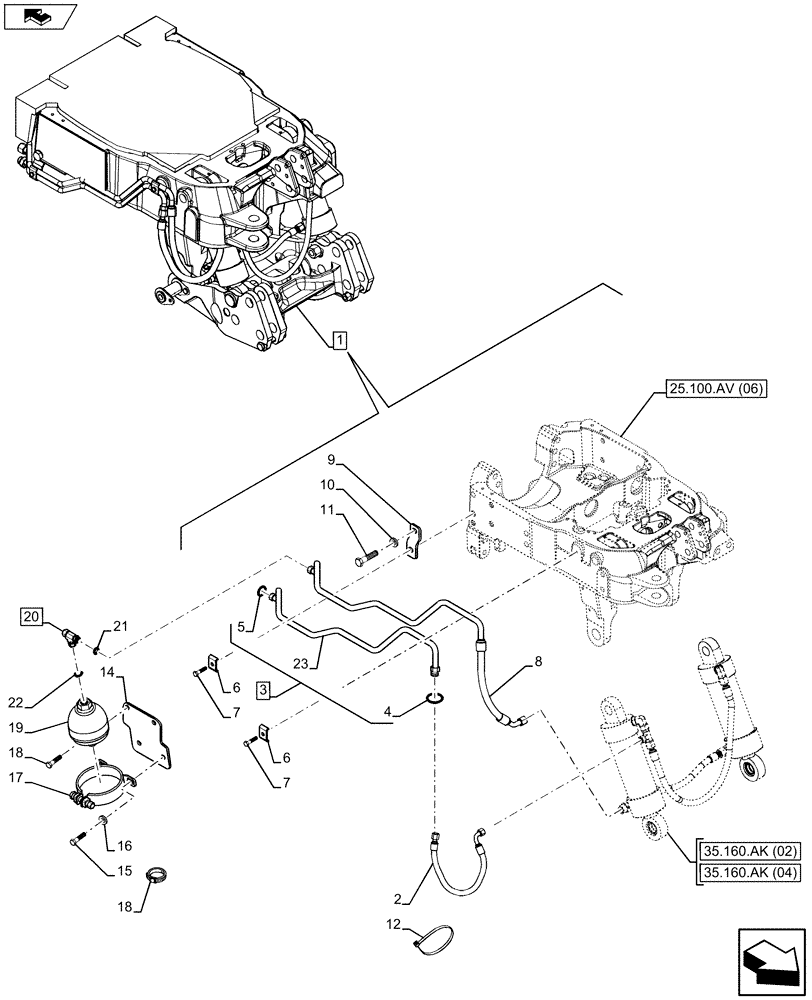

Схема запчастей Case IH MAXXUM 110 - (35.160.AK[01]) - VAR - 333648, 336831, 743699, 743700 - HYDRAULIC LIFT, PIPE, ACCUMULATOR (35) - HYDRAULIC SYSTEMS
15
7
6
20
8
7
19
16
23
6
1
35.160.ak (02)
11
9
17
12
22
5
25.100.av (06)
18
2
14
21
35.160.ak (04)
4
3
18
home
10

Артикул

Название

Примечание

Количество

1

87563271

HITCH

ASSY, Incl 2 - 11

1шт.

See Hitch Assy Components also in Figures 35.160.AK (02), 35.162.AB (01), 55.160.AP (02)

1шт.

2

47057654

FLEXIBLE HOSE,Hyd, 12mm ID x 600mm L

1шт.

3

87603038

HYD TUBE,16 mm OD x 784.91 mm L

ASSY, Incl 4 - 5, 23

1шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

47057074

CLAMP,48.6mm x 30mm

2шт.

7

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

87603039

HYD TUBE,345 mm L

From Accumulator to Front Lift Cylinder

1шт.

9

87603020

CLAMP,21mm HD, 110mm L

1шт.

10

14497101

WASHER,M20 x 37 x 3

1шт.

11

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

1шт.

12

14560387

HOSE CLIP,Black, 380mm L

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

14

47057232

SUPPORT

1шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

17

47057603

CLAMP,119mm - 127mm

1шт.

18

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

19

84290006

ACCUMULATOR,210 Bar, 0.50L

1шт.

20

47057674

TEE

ASSY, Incl 21 - 22

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

Hydraulic Tube, Incl in 3

1шт.

Выбрано товаров: 24
