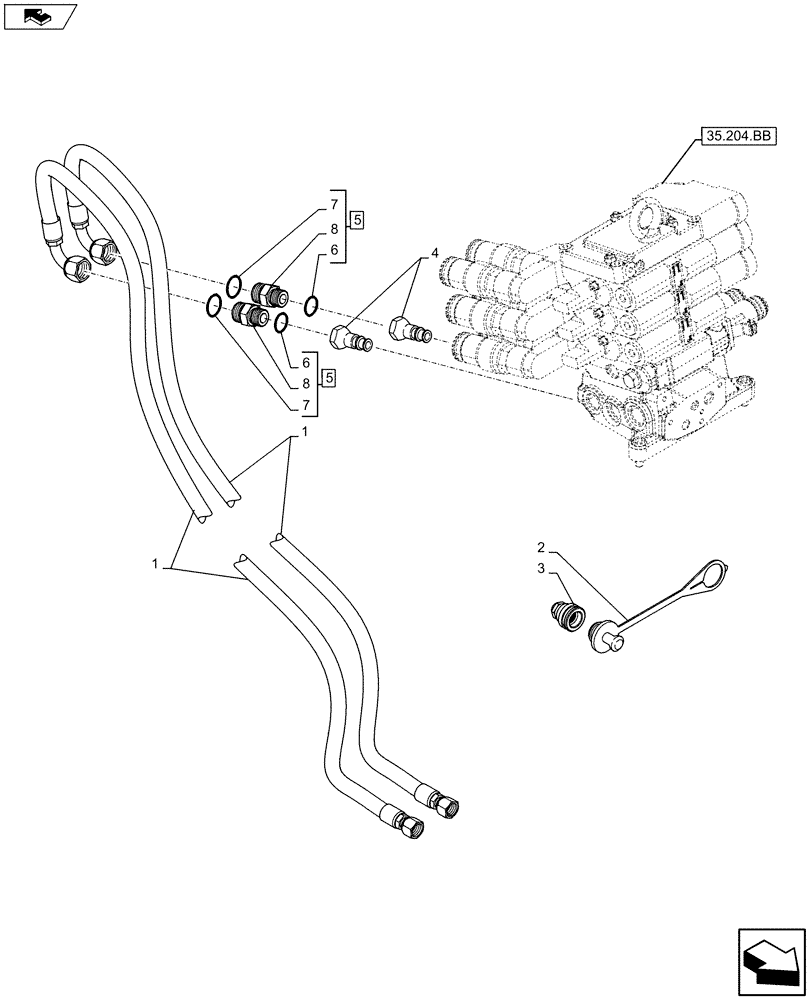

Запчасти Case IH MAXXUM 110 (35.160.AB[04]) - VAR - 330926 - CONTROL VALVE HOSES (35) - HYDRAULIC SYSTEMS

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

2шт.

2

5179576

PLUG,24mm, Green

GREEN

2шт.

3

47127559

COUPLING, QUICK, FEM

2шт.

4

83972881

COUPLING

1/2-14 GAS

2шт.

5

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

ASSY, Incl 6, 7, 8

2шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

17.12mm ID x 2.62mm

1шт.

7

83416185

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

0.937 ID x 0.103 Width

1шт.

8

NSS

NOT SOLD SEPARAT

Connector 1/2 BSPP A13/16 -16 ORSF, Incl in 5

1шт.
