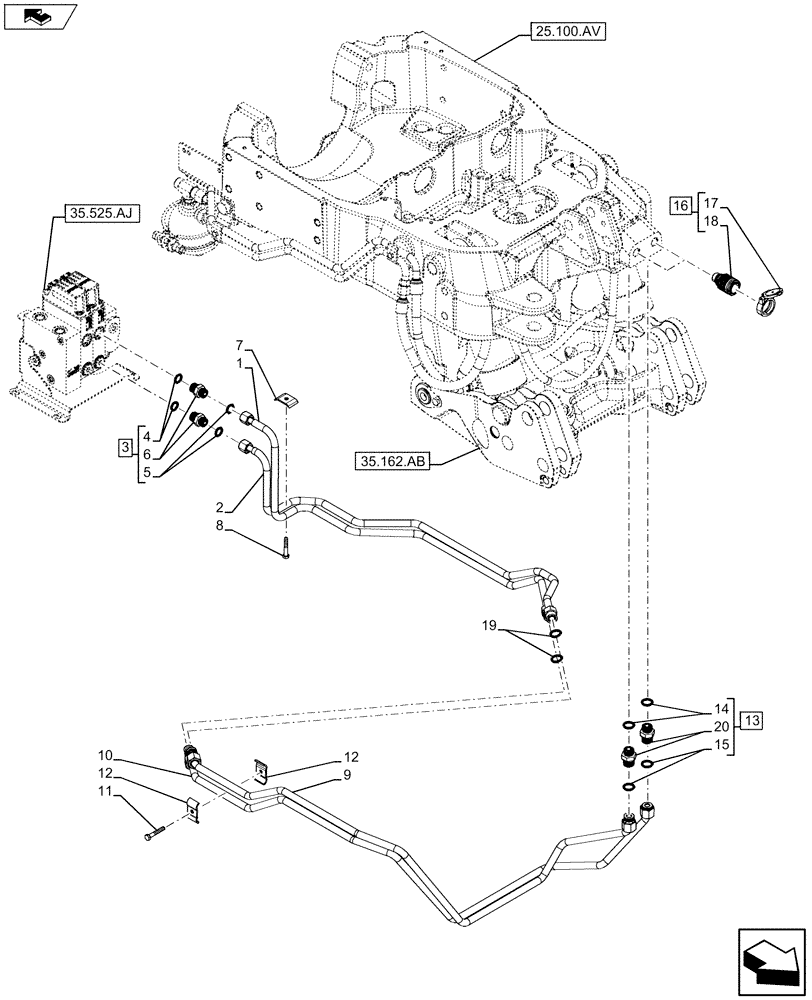

Запчасти Case IH MAXXUM 110 (35.160.AB[01]) - VAR - 332355 - CONTROL VALVE HOSES (35) - HYDRAULIC SYSTEMS

1

84516558

TUBE

1шт.

2

84516561

TUBE

1шт.

3

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 4, 5, 6

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.07X.489 14 6

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2.2W X 19.3 ID MM CL 6 GREEN

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, STR -8 ORFS X M22 X 1.5 ORB, Incl in 3

1шт.

7

47057074

CLAMP,48.6mm x 30mm

1шт.

8

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

M8X50 8.8 DAC

1шт.

9

84530809

TUBE

1шт.

10

84548222

TUBE

1шт.

11

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

M8X50 FULL 8.8 ZND

1шт.

12

84177648

CLAMP BRACKET

HOSE, L16

2шт.

13

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 14, 15, 16

2шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2.2W X 19.3 ID MM CL 6 GREEN

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

.07X.614 16 6

1шт.

16

87301571

QUICK MALE COUPLING,M22 x 1.5

ASSY, Incl 17, 18

2шт.

17

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

1шт.

18

NSS

NOT SOLD SEPARAT

Quick Coupler Female, Incl in 16

1шт.

19

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

Connector, STR -10 ORFS X M22 X 1.5 ORB, Incl in 13

1шт.
