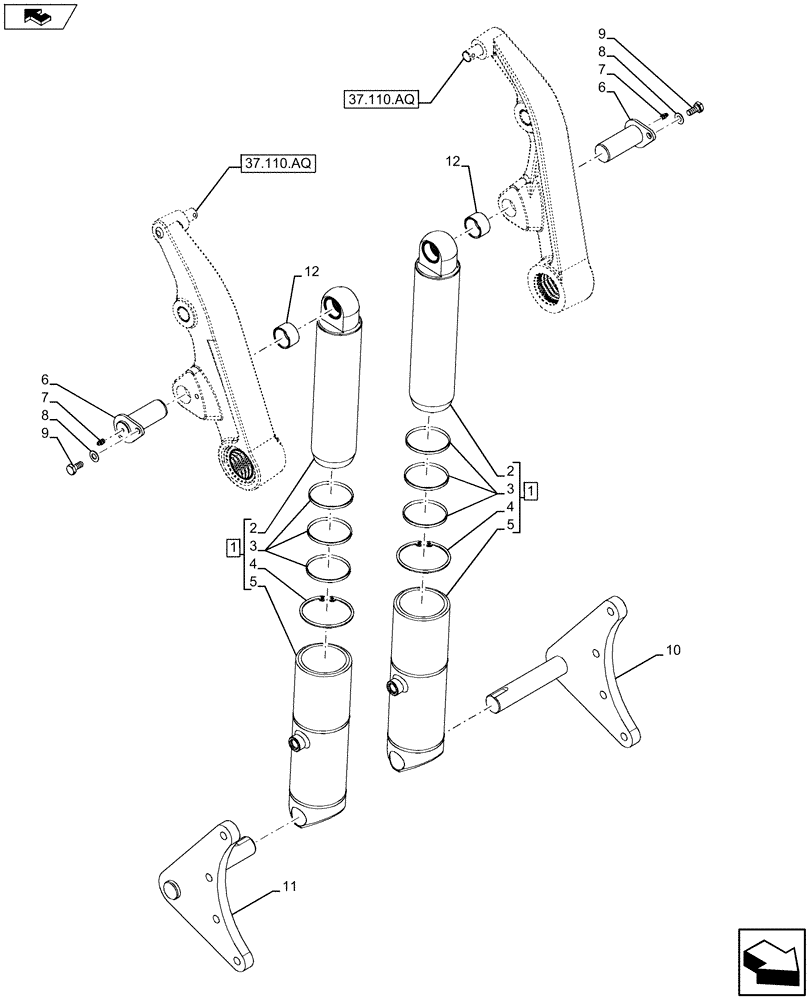

Запчасти Case IH MAXXUM 110 (35.116.AH[02]) - VAR - 331908, 334963, 334965, 390911 - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87306505

HYDRAULIC CYLINDER,80mm Rod, 177mm Stroke

ASSY, Incl 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

3

47134495

SEAL KIT

1шт.

4

87663330

RING

1шт.

5

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

6

5190967

PIN,34.7mm OD x 96mm L

ASSY

2шт.

7

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

10.5X21X4.2 MM STL DAC

2шт.

9

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

10

5191004

SUPPORT

LH

1шт.

11

5191006

SUPPORT

RH

1шт.

12

5198328

BUSHING

2шт.
