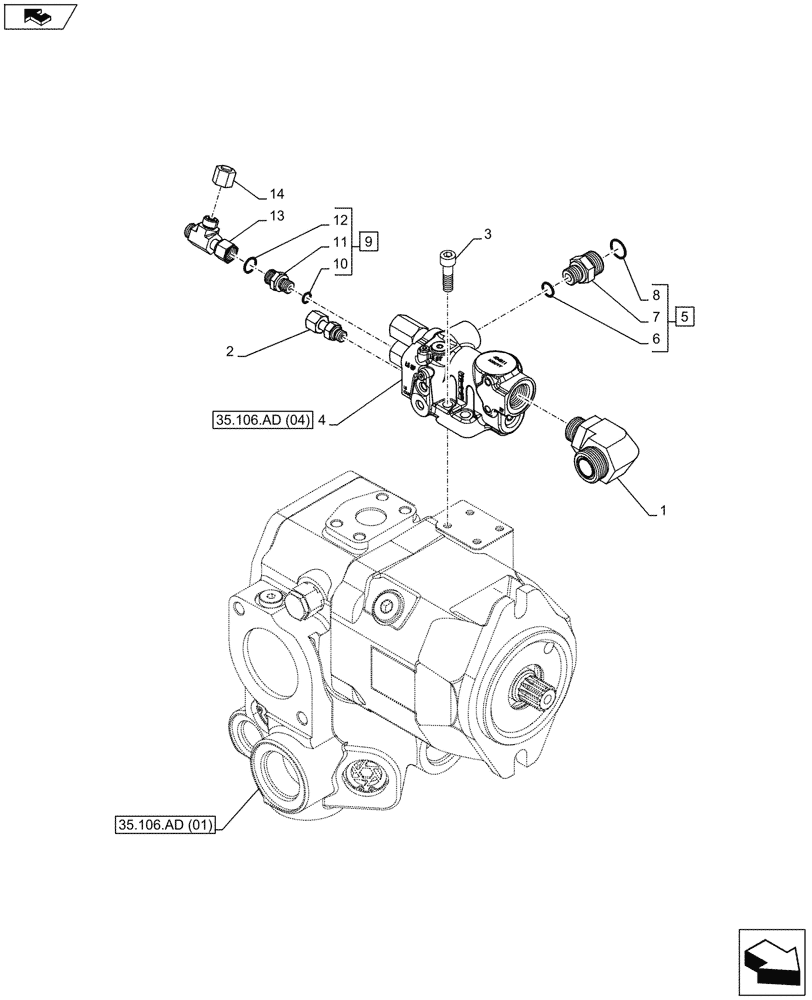

Запчасти Case IH MAXXUM 110 (35.106.AD[02]) - VAR - 332351, 391223 - HYDRAULIC PUMP, PRIORITY VALVE (35) - HYDRAULIC SYSTEMS

1

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

2

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.

3

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

4

84575181

VALVE

1шт.

5

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

13

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

14

87668376

CAP,9/16"-18 Inch THD

1шт.
