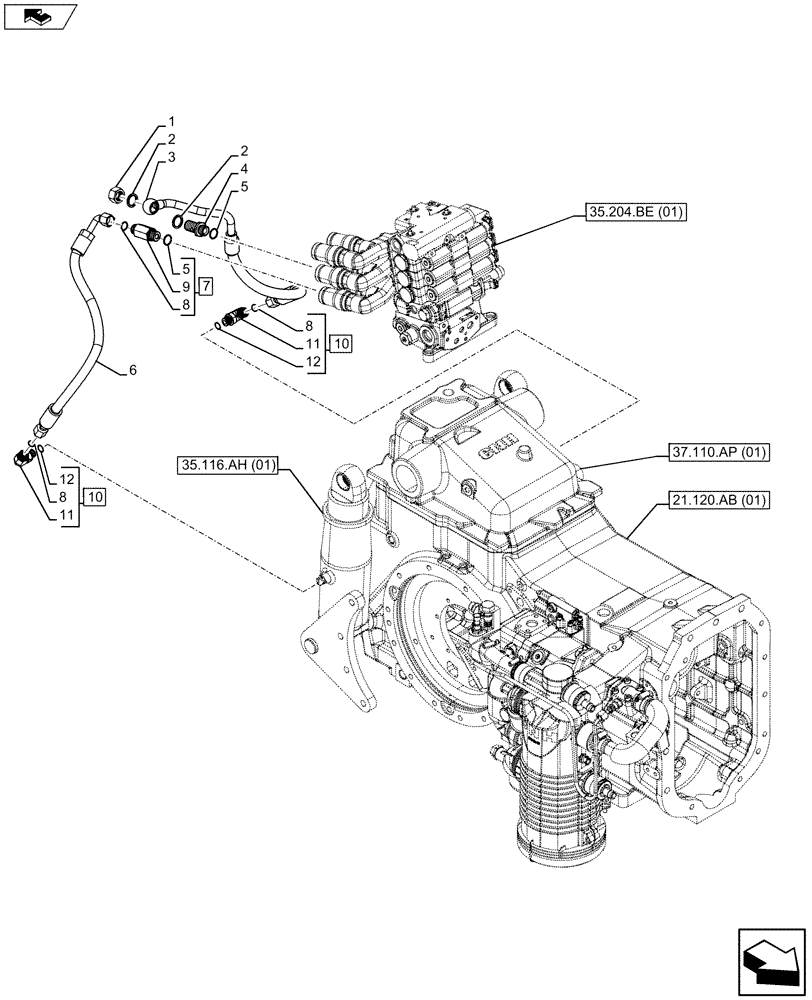

Запчасти Case IH MAXXUM 110 (35.100.AR[02]) - VAR - 396844, 743685, 743686, 743733 - HYDRAULIC LIFT, PIPE (35) - HYDRAULIC SYSTEMS

1

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

2

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

3

47133648

HOSE,10mm ID x 425mm L

1шт.

4

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

47133647

HOSE,13/16"-16 ID x 600mm L

1шт.

7

87519164

HYD CONNECTOR

ASSY, Incl 5, 8, 9

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

10

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 8, 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
