Запчасти Case IH MAXXUM 110 (33.224.BA) - VAR - 332727, 332739 - PNEUMATIC TRAILER BRAKE - VALVE AND LINES (33) - BRAKES & CONTROLS

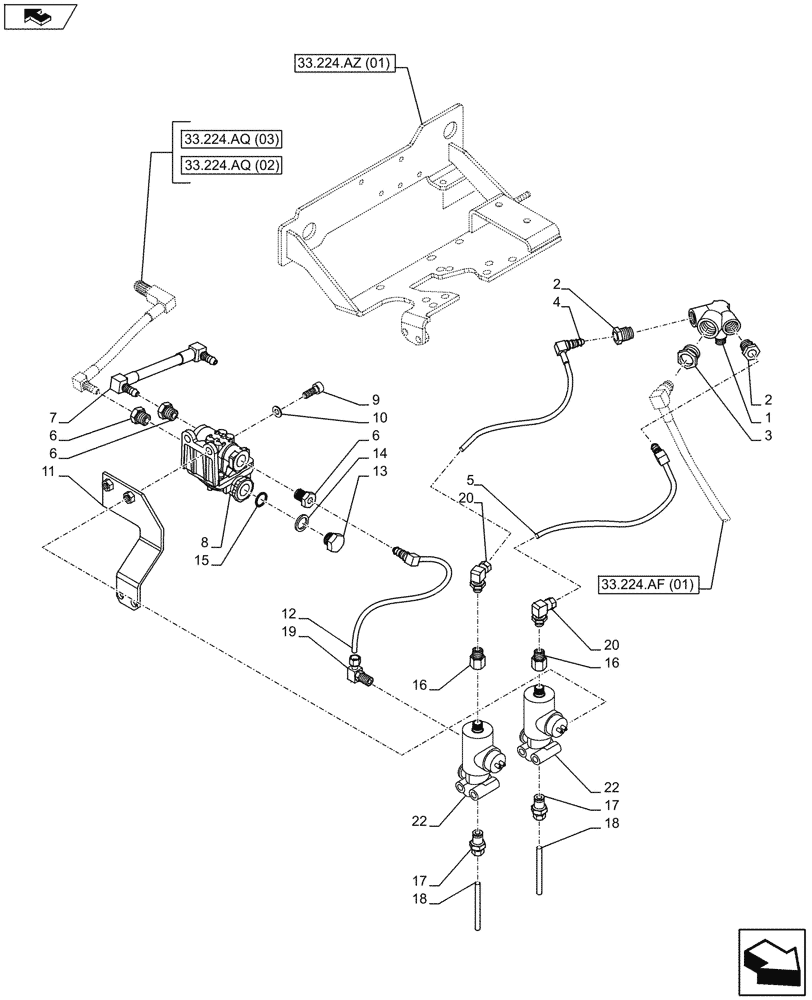

Схема запчастей Case IH MAXXUM 110 - (33.224.BA) - VAR - 332727, 332739 - PNEUMATIC TRAILER BRAKE - VALVE AND LINES (33) - BRAKES & CONTROLS
33.224.af (01)
17
3
16
12
17
22
16
7
2
1
20
6
4
5
15
9
22
8
13
6
18
14
19
11
10
20
6
18
2
33.224.aq (02)
33.224.az (01)
33.224.aq (03)

Артикул

Название

Примечание

Количество

1

82019795

FITTING

3 Way Connector

1шт.

2

82036187

HYD CONNECTOR,M16 x 1.5

M16

2шт.

3

82034157

ADAPTER

M22

1шт.

4

87677917

TUBE

Valve To Handbrake Solenoid

1шт.

5

87677915

TUBE

Valve To Advance Solenoid

1шт.

6

87588079

HYD CONNECTOR,M16 x 1.5

M16 x 1.5 NG8

3шт.

7

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

1шт.

8

84157669

VALVE

Quick Release

1шт.

9

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

6шт.

11

84143167

SUPPORT

Quick Release Valve

1шт.

12

47419049

TUBE

1шт.

13

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

M16

1шт.

14

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

15

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

16

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

17

82006828

ADAPTER

M12 Male Push-in

2шт.

18

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

19

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

M12 90 Degree

1шт.

20

87678122

HYD CONNECTOR,M10 x 1

Elbow 90 Degree

2шт.

21

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

22

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

Выбрано товаров: 22
