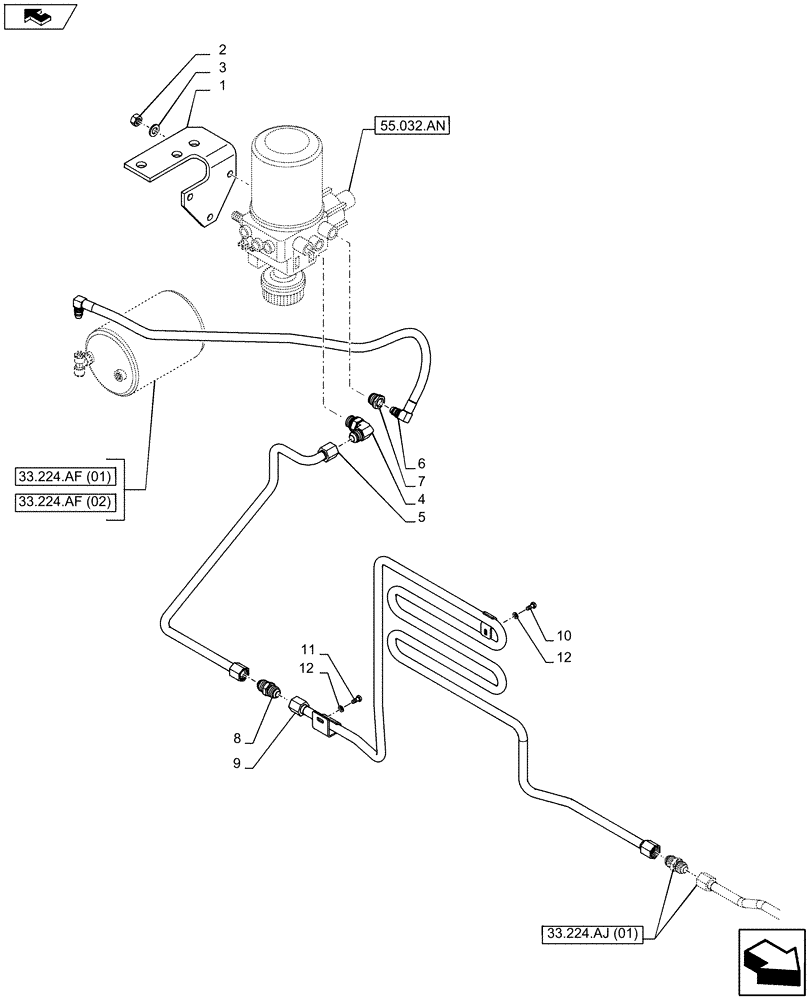

Запчасти Case IH MAXXUM 110 (33.224.AQ[01]) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE, AIR DRYER, LINES (33) - BRAKES & CONTROLS

1

84475956

BRACKET

Regenerator Air Dryer Support

1шт.

2

11702911

NUT,M12, Cl 8, ZND

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

1шт.

5

84471141

BRAKE LINE

1шт.

6

47386437

TUBE

1шт.

7

82036156

FITTING,M22 x 1.5 x NG12

M22 x 1.5 NG12

1шт.

8

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

Straight 37 Flare 7/8UNF

1шт.

9

84576290

TUBE

From Compressor

1шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
