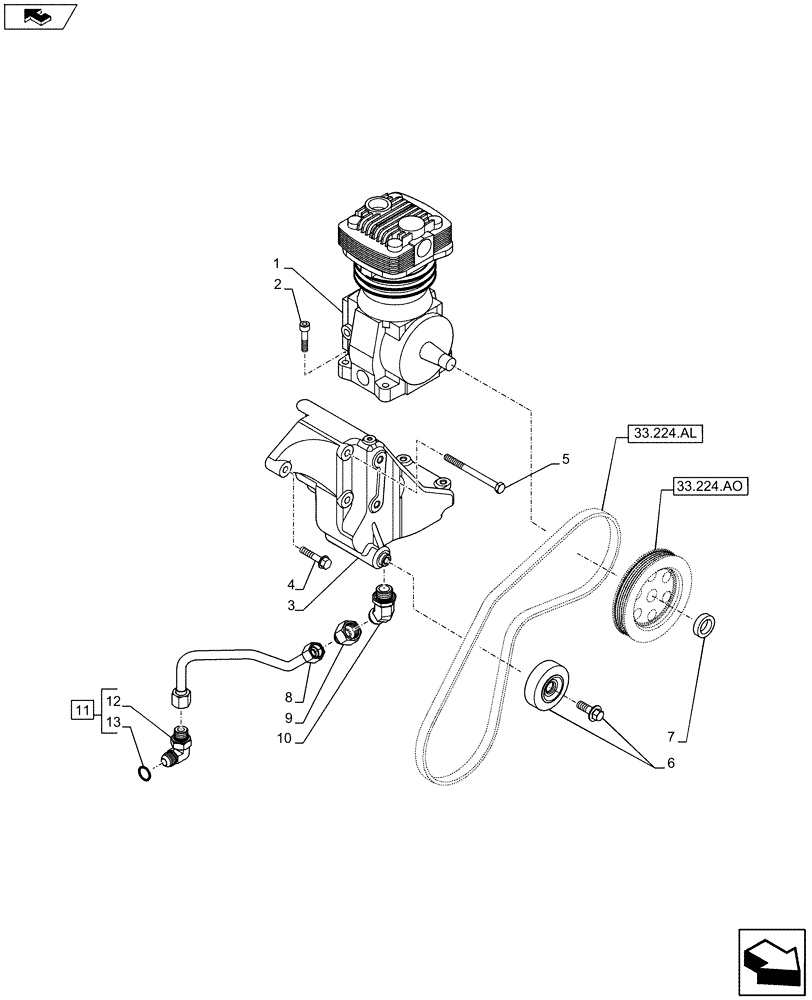

Запчасти Case IH MAXXUM 110 (33.224.AH) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE, AIR COMPRESSOR (33) - BRAKES & CONTROLS

1

84184563

AIR COMPRESSOR

1шт.

2

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

3

87802974

SUPPORT

1шт.

4

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

5

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

6

87803017

IDLER,65mm OD

1шт.

7

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

1шт.

8

87802678

TUBE,12.00mm OD x 189.00mm, 139.00mm L

1шт.

9

82006545

ADAPTER,3/4" - 16 NPT x 7/8" - 14

1шт.

10

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

11

5157557

ELBOW

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
