Запчасти Case IH MAXXUM 110 (33.220.AM[03]) - VAR - 330718, 331723, 332301, 332302, 744784, 744785 - TRAILER BRAKE VALVE - BREAKDOWN (33) - BRAKES & CONTROLS

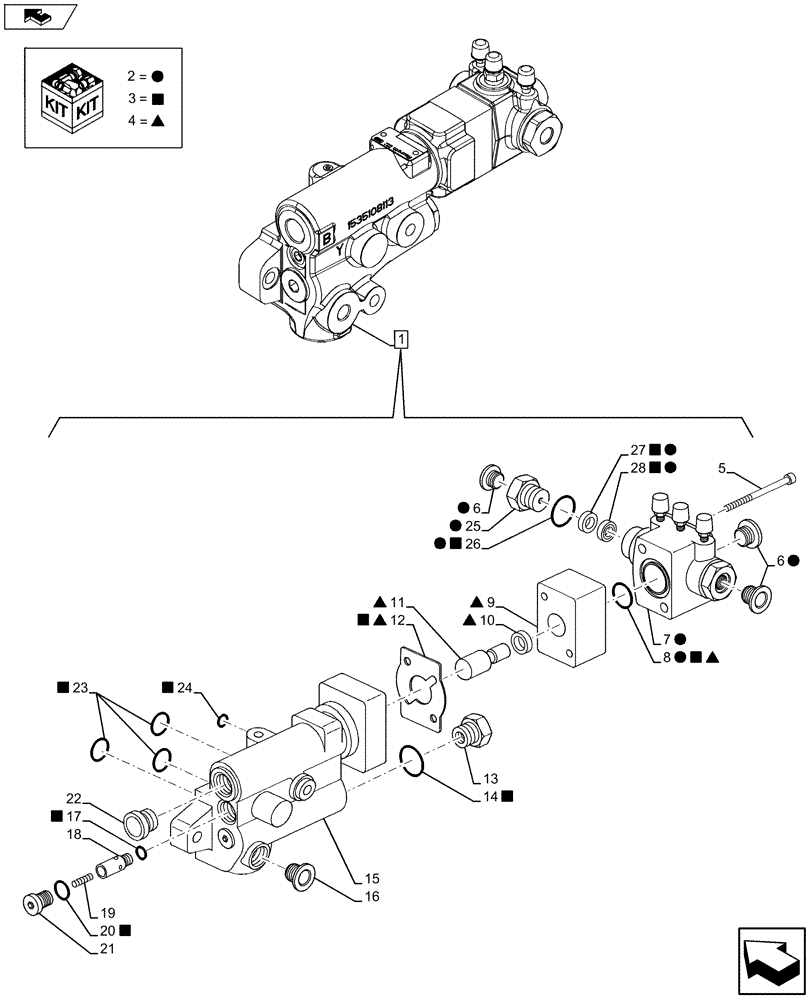

Схема запчастей Case IH MAXXUM 110 - (33.220.AM[03]) - VAR - 330718, 331723, 332301, 332302, 744784, 744785 - TRAILER BRAKE VALVE - BREAKDOWN (33) - BRAKES & CONTROLS
3
8
22
13
3
15
home
6
16
3
2
2
21
5
28
9
17
2
2
4
3
23
7
3
3
2
27
3
19
11
26
4
3
3
6
2
10
3
4
2
4
1
14
18
24
12
20
4
4
25
2
2
3

Артикул

Название

Примечание

Количество

1

5192069

BRAKE VALVE

ASSY, Incl 2 - 28

1шт.

2

47128437

VALVE

ASSY, Incl 6 - 8, 25 - 28

1шт.

3

47128438

SEAL KIT

ASSY, Incl 8, 13, 14, 17, 20, 23, 24, 26, 27, 28

1шт.

4

47129477

SERVICE KIT

ASSY, Incl 8 - 12

1шт.

5

5190750

SCREW

M6X70

2шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 2

3шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 1, 2

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1, 2, 3, 4

1шт.

9

NSS

NOT SOLD SEPARAT

Block, Incl in 1, 4

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1, 4

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 1, 4

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Incl in 1, 3, 4

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1, 3

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Stud, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

3шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2, 3

1шт.

27

NSS

NOT SOLD SEPARAT

Washer, Incl in 2, 3

1шт.

28

NSS

NOT SOLD SEPARAT

Spacer, Incl in 2, 3

1шт.

Выбрано товаров: 28
