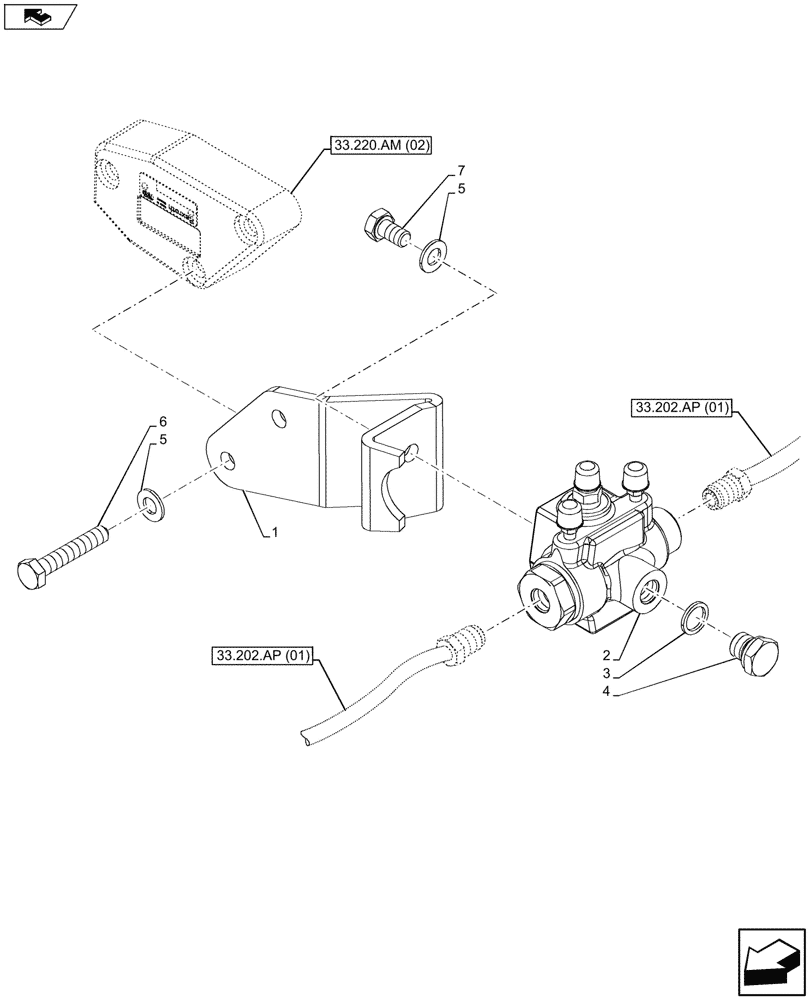

Запчасти Case IH MAXXUM 110 (33.220.AC[05]) - VAR - 330720, 332303 - BRAKING SYSTEM (33) - BRAKES & CONTROLS

1

5197423

SUPPORT

1шт.

2

47126821

HYDRAULIC VALVE

1шт.

3

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

4

47131496

PLUG,Hex, M12 x 1

1шт.

5

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

6

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

7

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
