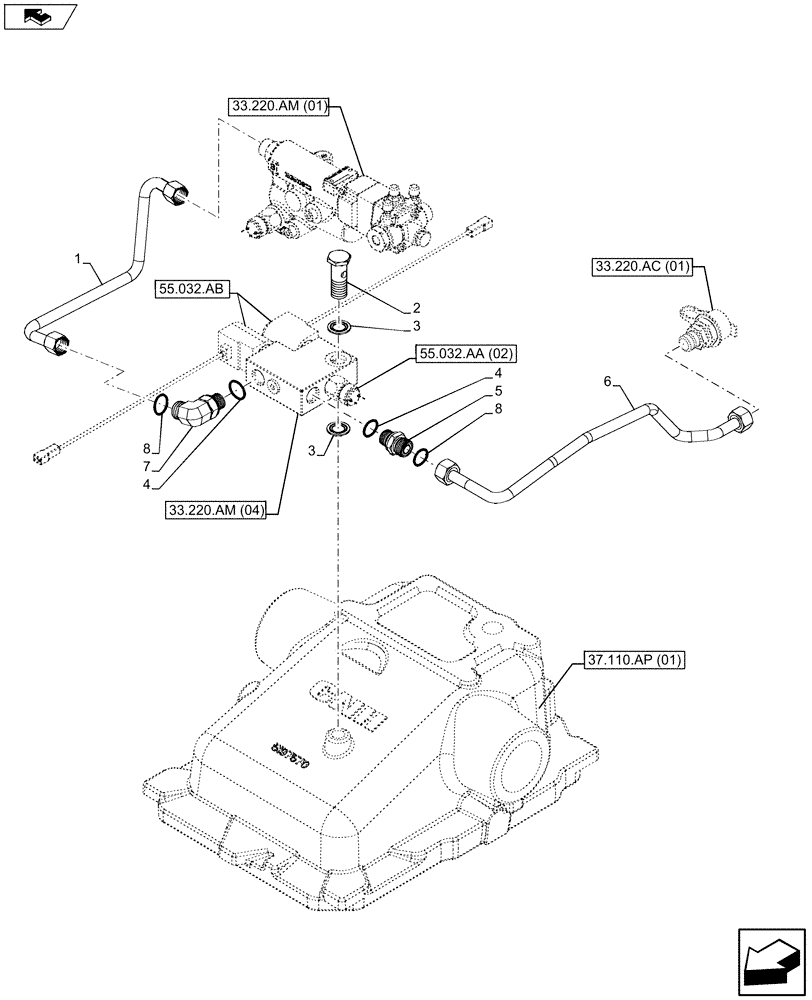

Запчасти Case IH MAXXUM 110 (33.220.AC[02]) - VAR - 331723, 332302, 744785 - REMOTE CONTROL VALVE PIPE (33) - BRAKES & CONTROLS

1

47124762

HYD TUBE

1шт.

2

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

3

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18

2шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

5

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

M8X1.5

1шт.

6

47451994

TUBE

Supply From Trailer Brake Valve

1шт.

7

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.
