Запчасти Case IH MAXXUM 110 (33.204.AD[04]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS

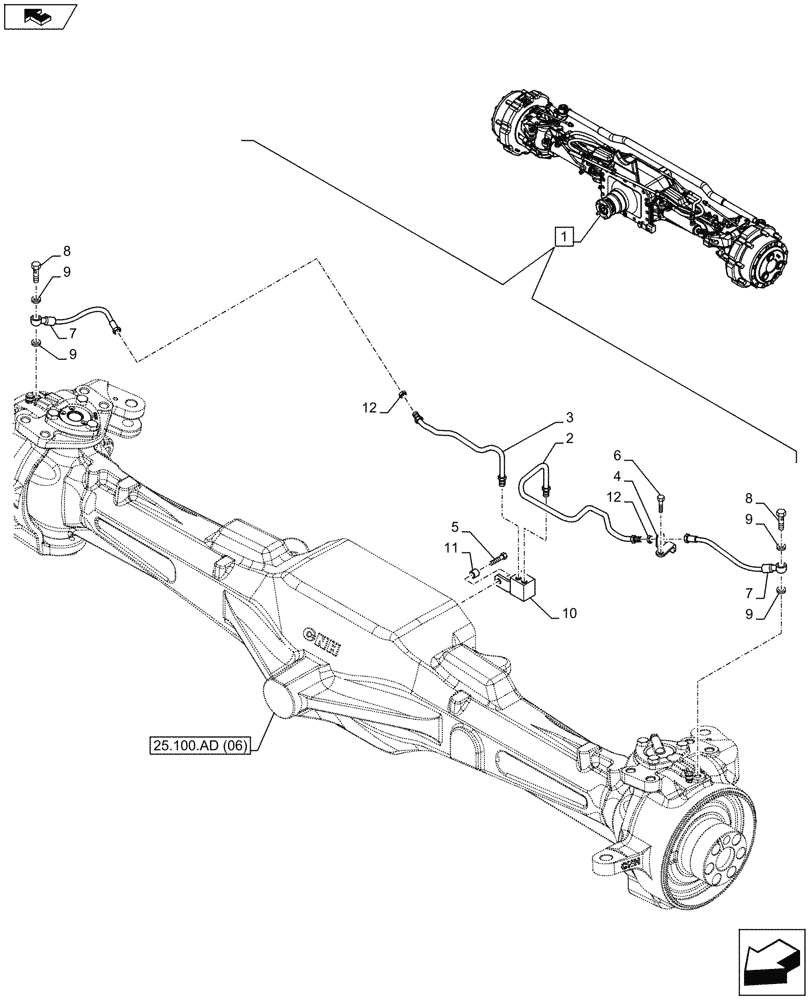

Схема запчастей Case IH MAXXUM 110 - (33.204.AD[04]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS
25.100.ad (06)
8
10
2
12
home
8
3
7
9
12
1
9
7
5
9
11
9
4
6

Артикул

Название

Примечание

Количество

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (06), 25.100.AD (06), 25.102.AC (11), 25.102.AE (02), 25.108.AA (06), 25.108.AB (08), 25.108.AG (06), 25.108.AN (06), 33.204.AD (03), 41.106.AD (02), 41.216.AN (07), 41.216.AV (06), 55.047.AA (06)

1шт.

2

87588339

PIPE

Front Brake Assy Suspended, LH

1шт.

3

87588316

PIPE

Front Brake Assy Suspended, RH

1шт.

4

87571108

BRACKET

LH

1шт.

5

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

87351041

BRACKET

1шт.

11

47127963

SPACER

1шт.

12

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.

Выбрано товаров: 13
