Запчасти Case IH MAXXUM 110 (33.204.AD[03]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE DISC (33) - BRAKES & CONTROLS

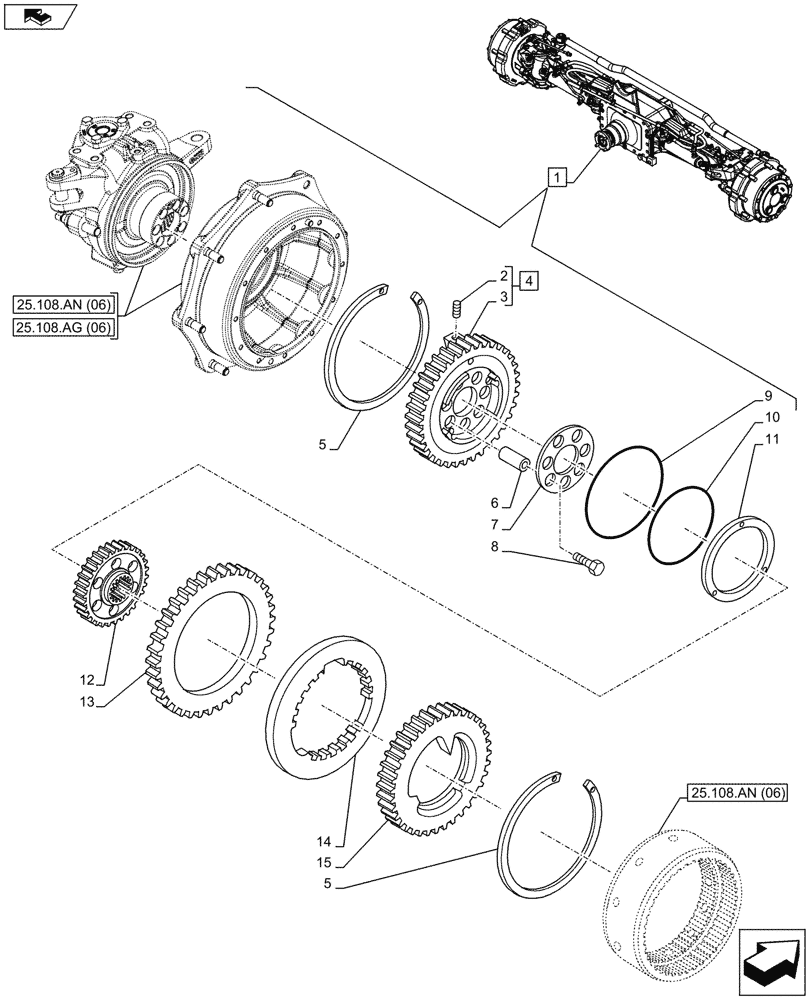

Схема запчастей Case IH MAXXUM 110 - (33.204.AD[03]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE DISC (33) - BRAKES & CONTROLS
25.108.ag (06)
6
10
4
5
8
15
7
home
2
1
5
12
11
9
3
14
13
25.108.an (06)
25.108.an (06)

Артикул

Название

Примечание

Количество

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 15

1шт.

See also Axle Components in Figure 25.100.AA (06), 25.100.AD (06), 25.102.AC (11), 25.102.AE (02), 25.108.AA (06), 25.108.AB (08), 25.108.AG (06), 25.108.AN (06), 33.204.AD (04), 41.106.AD (02), 41.216.AN (07), 41.216.AV (06), 55.047.AA (06)

1шт.

2

14326101

PLUG,M8 x 11

M8 x 10

2шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 4

2шт.

4

87332271

GEAR

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

5

87332077

SNAP RING

4шт.

6

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

14шт.

7

87393540

PLATE

2шт.

8

16331930

BOLT,Hex, M14 x 1.5 x 55mm

14шт.

9

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

2шт.

10

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

2шт.

11

5190528

PISTON

2шт.

12

87332183

HUB

2шт.

13

87608346

NOTCHED DISK

2шт.

14

5175567

BRAKE DISC,213.00mm OD

2шт.

15

87332079

BRAKE DISC

2шт.

Выбрано товаров: 16
