Запчасти Case IH MAXXUM 110 (33.204.AD[02]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS

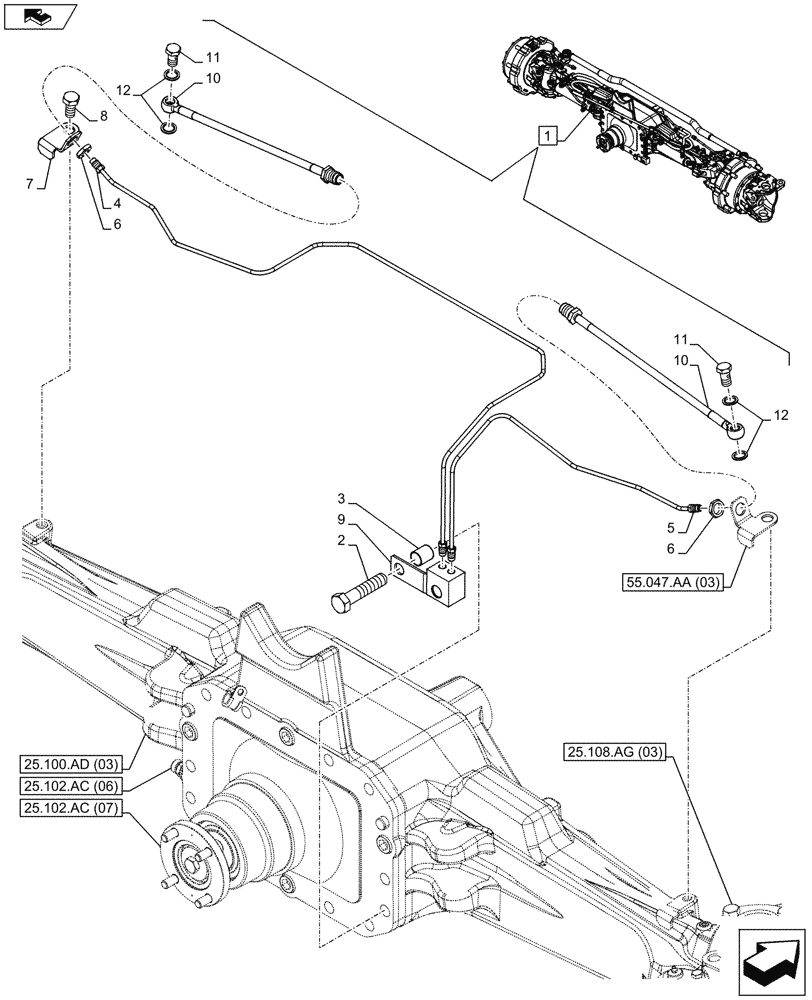

Схема запчастей Case IH MAXXUM 110 - (33.204.AD[02]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS
25.100.ad (03)
8
3
12
2
10
11
6
9
6
home
10
12
4
7
11
5
1
25.108.ag (03)
25.102.ac (07)
25.102.ac (06)
55.047.aa (03)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (03), 25.108.AB (01), 25.108.AG (03), 25.108.AN (03), 33.204.AD (01), 41.106.AD (01), 41.216.AN (04), 55.047.AA (03)

1шт.

2

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

3

47127963

SPACER

1шт.

4

87571766

BRAKE LINE

Oil Feeding Front LH Brake

1шт.

5

87571774

BRAKE LINE

Oil Feeding Front RH Brake

1шт.

6

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.

7

87571108

BRACKET

LH

1шт.

8

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

87351041

BRACKET

1шт.

10

5155700

HOSE,4.75mm ID x 315.00mm

Air, 4.75mm ID x 9.4mm OD x 315mm

2шт.

11

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

12

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

Выбрано товаров: 13
