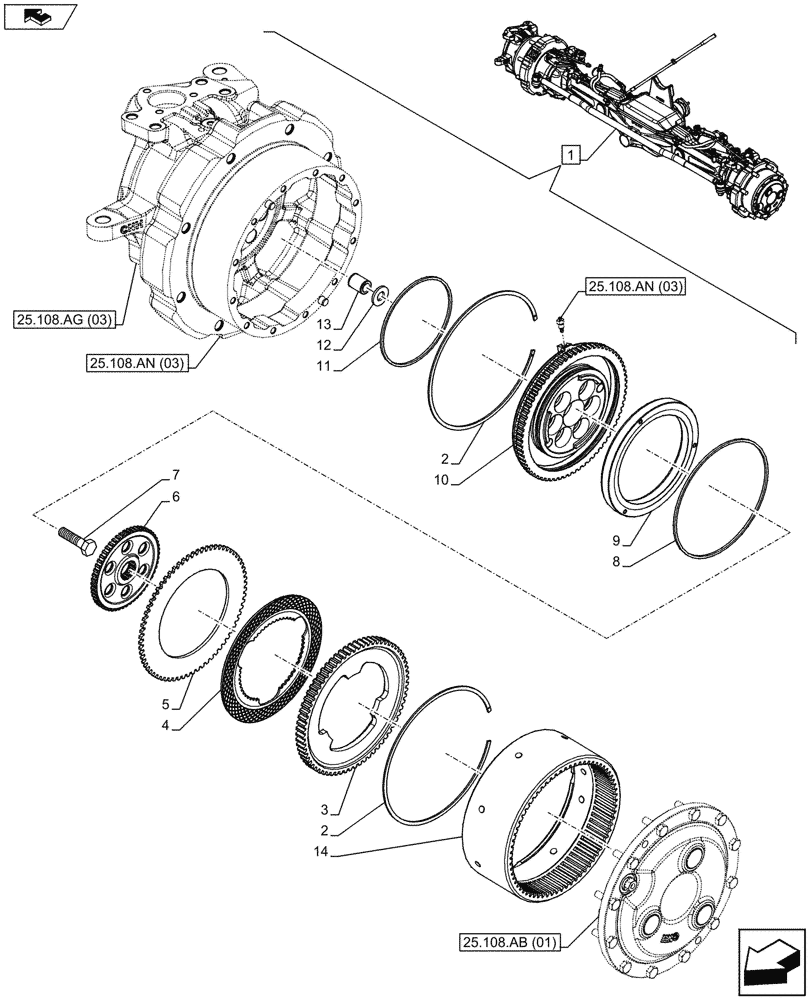

Запчасти Case IH MAXXUM 110 (33.204.AD[01]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, BRAKE DISC (33) - BRAKES & CONTROLS

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 14

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (03), 25.108.AB (01), 25.108.AG (03), 25.108.AN (03), 33.204.AD (02), 41.106.AD (01), 41.216.AN (04), 55.047.AA (03)

1шт.

2

5175606

RING

4шт.

3

5181748

WEAR PLATE,68T

2шт.

4

5175567

BRAKE DISC,213.00mm OD

2шт.

5

5171917

BRAKE DISC,150mm ID x 227mm OD x 4.95mm Thk

2шт.

6

5178475

HUB

2шт.

7

16331930

BOLT,Hex, M14 x 1.5 x 55mm

12шт.

8

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

2шт.

9

5190528

PISTON

2шт.

10

5190527

HOUSING

2шт.

11

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

2шт.

12

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

12шт.

13

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

12шт.

14

5191771

RING GEAR,248.00mm OD

2шт.
