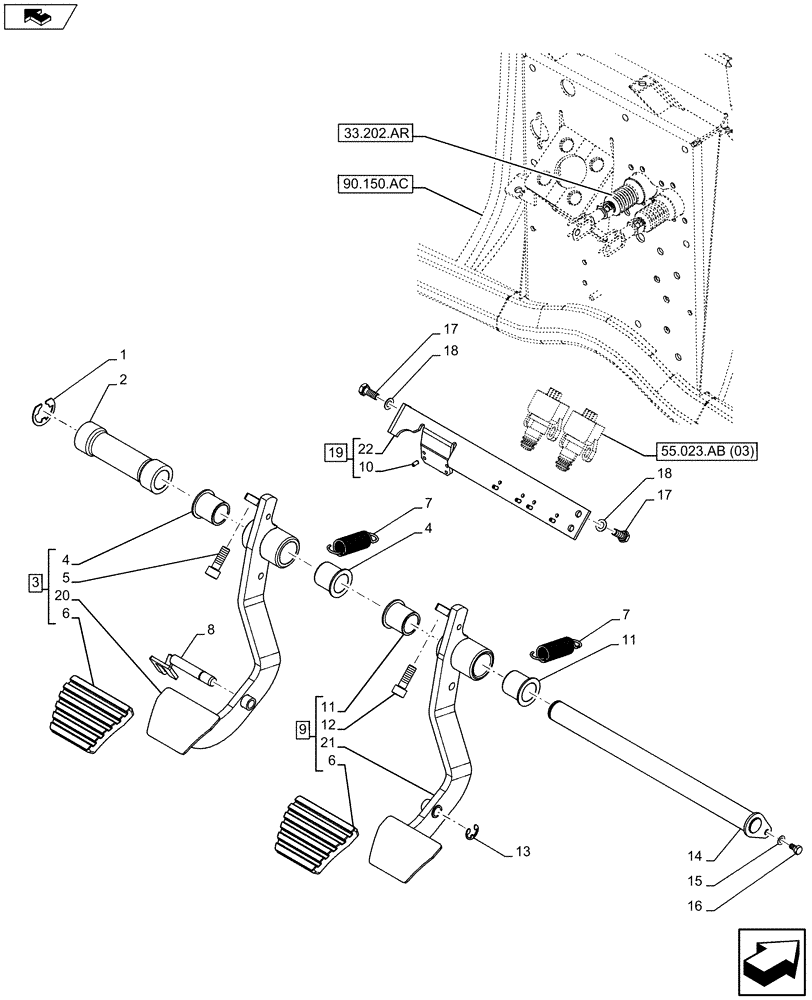

Запчасти Case IH MAXXUM 110 (33.202.BN) - VAR - 390283 - BRAKES, PEDAL (33) - BRAKES & CONTROLS

1

83937363

SNAP RING

1шт.

2

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

3

87547097

PEDAL

LH, ASSY, Incl 4 - 6, 20

1шт.

4

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

2шт.

5

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

6

82025747

RUBBER PEDAL PAD

1шт.

7

5153180

SPRING,21mm OD x 84mm L

2шт.

8

84209162

PIN,11.965mm OD x 70mm L

1шт.

9

87547098

PEDAL

RH, ASSY, Incl 6, 11, 12, 21

1шт.

10

82025747

RUBBER PEDAL PAD

1шт.

11

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

2шт.

12

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

12

86610170

LOCK PIN,M4 x 12, Slotted

3шт.

13

11088180

CIRCLIP,M11, Stainless

1шт.

14

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

1шт.

15

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

16

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

18

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

19

84183613

SUPPORT

ASSY, Incl 10, 22

1шт.

20

NSS

NOT SOLD SEPARAT

Pedal, LH, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Pedal, RH, Incl in 9

1шт.

22

NSS

NOT SOLD SEPARAT

Support, Incl in 19

1шт.
