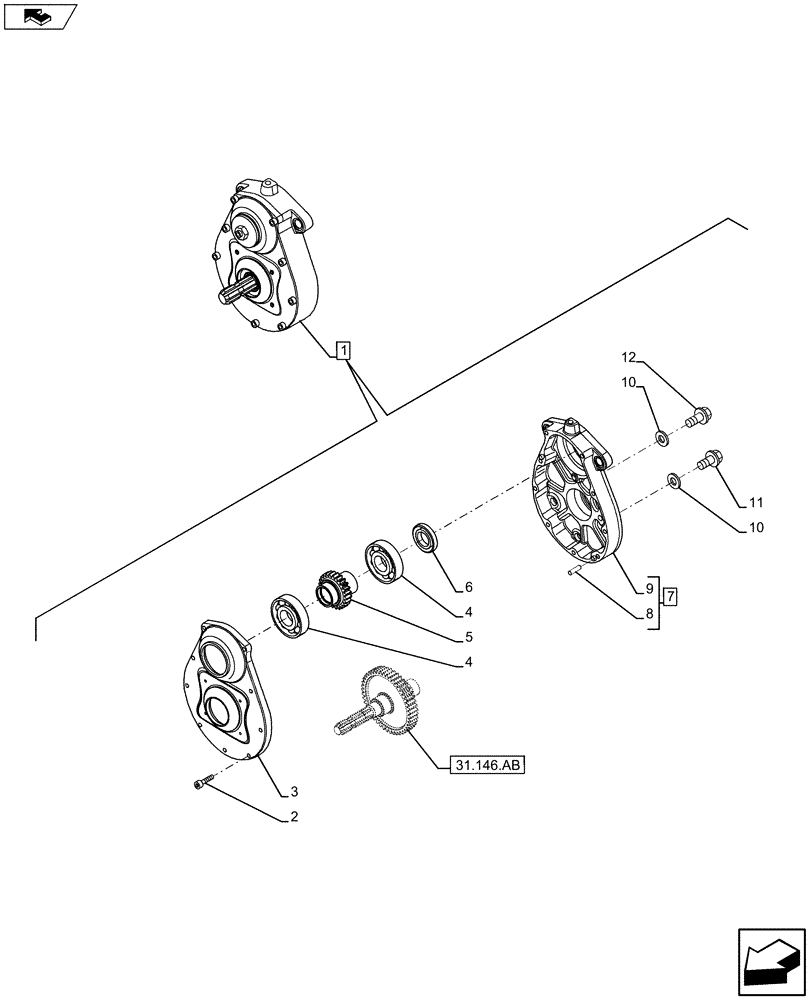

Запчасти Case IH MAXXUM 110 (31.146.AC) - VAR - 333648, 334648, 335648, 743700 - FRONT PLATE, HOUSING (31) - IMPLEMENT POWER TAKE OFF

1

84265034

GEARBOX

ASSY, Incl 2 - 12

1шт.

2

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

9шт.

3

NSS

NOT SOLD SEPARAT

Transmission Housing, Incl in 1

1шт.

4

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

5

87731121

GEAR,22T, 28T

1шт.

6

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

7

5197431

HOUSING

ASSY, Incl 8 - 9

1шт.

8

10839710

DOWEL,M10 x 15.00mm

2шт.

9

NSS

NOT SOLD SEPARAT

Dropbox Case, Incl in 7

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

11

5118991

PLUG,M22 x 1.5

2шт.

12

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

2шт.
