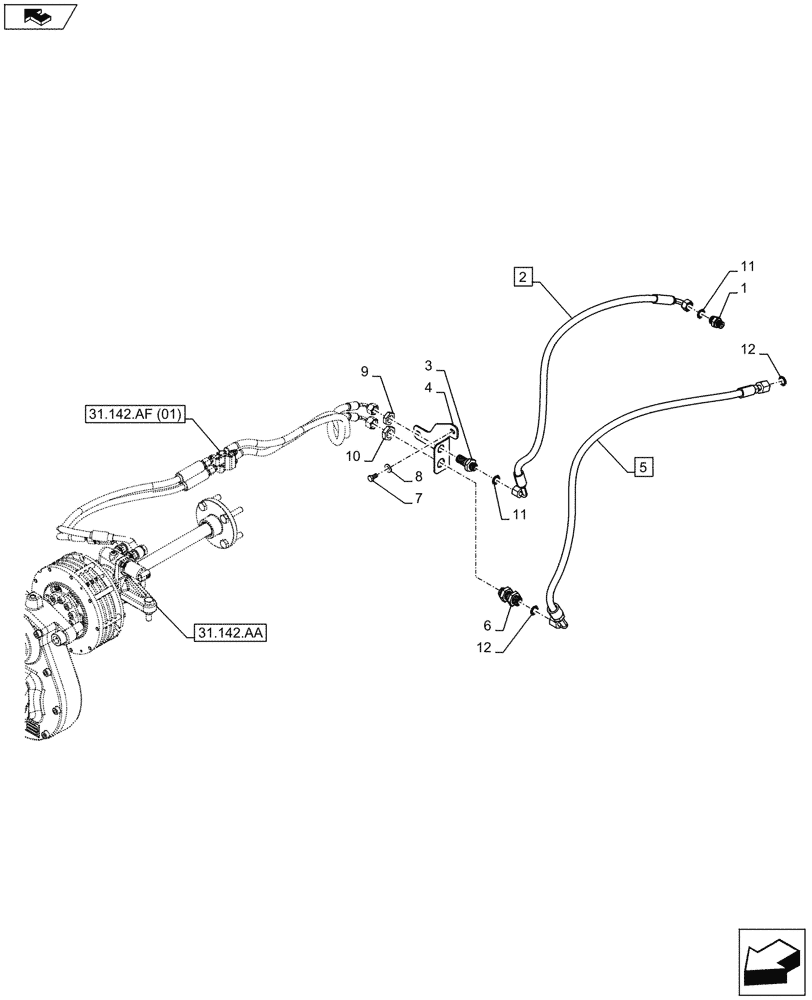

Запчасти Case IH MAXXUM 110 (31.142.AF[02]) - VAR - 333648, 334648, 743700 - FRONT PTO, HYD. LINE (31) - IMPLEMENT POWER TAKE OFF

1

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

2

84581109

HYDRAULIC HOSE,6.4mm ID x 925mm L, SAE 100R2

From Front Brake Valve, ASSY, Incl 11

1шт.

3

86978770

UNION,11/16"-6, ORFS

1шт.

4

84565992

BRACKET

1шт.

5

47512270

HYDRAULIC HOSE,6.4mm ID x 1120mm L, SAE 100R16

To Front Brake Valve, ASSY, Incl 12

1шт.

6

82039603

HYD CONNECTOR

1шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

87010704

BHD LOCK NUT,11/16"-16

1шт.

10

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
