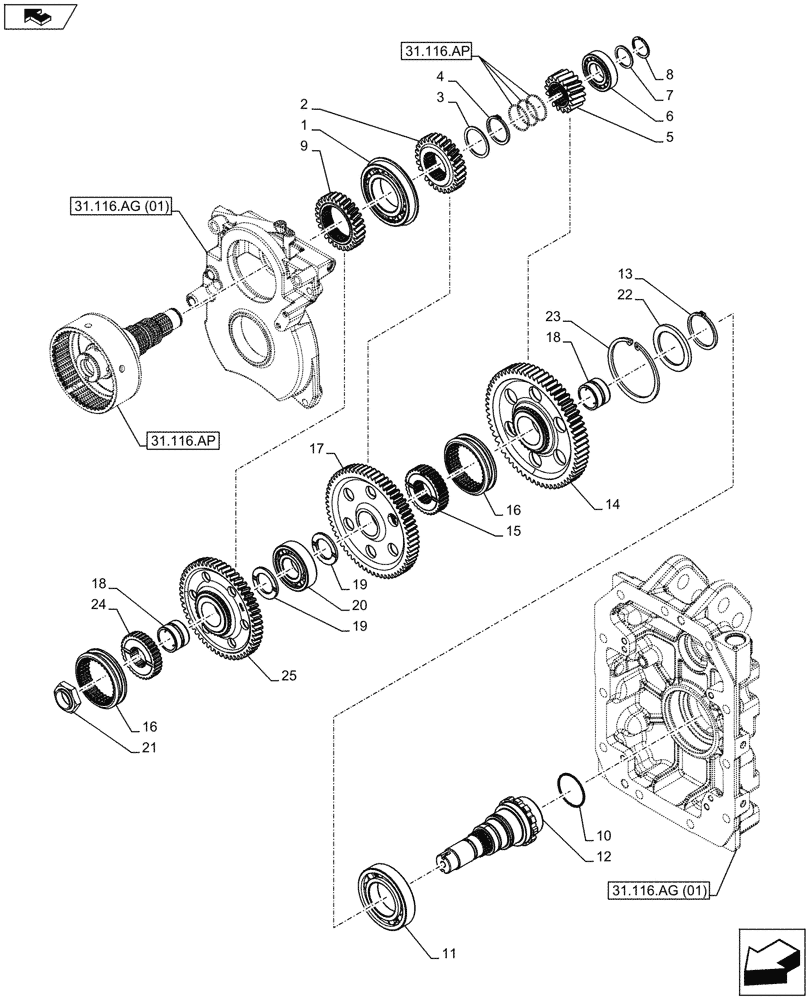

Запчасти Case IH MAXXUM 110 (31.116.AL[05]) - VAR - 332805 - POWER TAKE OFF (PTO) - SHAFT & GEAR (31) - IMPLEMENT POWER TAKE OFF

1

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

2

84382929

GEAR,Z28

1000 RPM

1шт.

3

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

4

5138419

SNAP RING,M50

1шт.

5

84289051

GEAR,Z19

540E RPM

1шт.

6

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

8

5154307

SNAP RING,M35

1шт.

9

84496105

GEAR,29T

1000E RPM

1шт.

10

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

11

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

12

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/750/1000 RPM

1шт.

13

5143130

SNAP RING,M60, Ext x 4mm

1шт.

14

84289050

GEAR,Z56

Driven, 540E RPM

1шт.

15

87578128

GEAR,21T Internal / 33T External

1шт.

16

87578126

SLEEVE,Z12

2шт.

17

84382936

GEAR,Z53

Driven, 1000 RPM

1шт.

18

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

2шт.

19

5192170

ANTI-WRAP PLATE

2шт.

20

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

21

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

22

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

23

11075976

SNAP RING,M120, Int

1шт.

24

87578127

SLEEVE,Z12

1шт.

25

84496106

GEAR

Driven, 1000E RPM

1шт.
