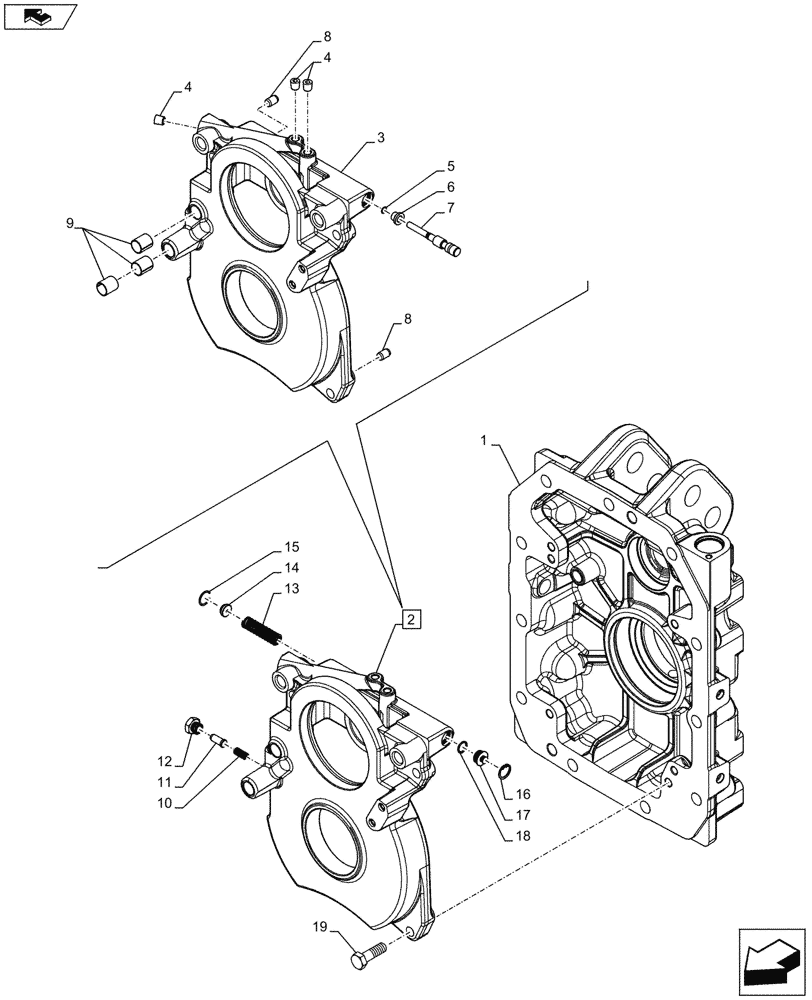

Запчасти Case IH MAXXUM 110 (31.116.AG[01]) - VAR - 332801, 332805, 335788, 390801, 744740 - POWER TAKE OFF (PTO) - COVER (31) - IMPLEMENT POWER TAKE OFF

1

47131252

HOUSING

1шт.

2

87673377

COVER

ASSY, Incl 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

5

13397370

SNAP RING,M8, Int

1шт.

6

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

7

82990921

VALVE,11.991mm/11.995mm OD x 85.5mm L, Class B

1шт.

Class Dimension is etched on the Valve Surface

1шт.

7

82990922

VALVE,11.996mm/12.000mm OD x 85.5mm L, Class C

1шт.

Class Dimension is etched on the Valve Surface

1шт.

7

82990923

VALVE,12.001mm/12.005mm OD x 85.5mm L, Class D

1шт.

Class Dimension is etched on the Valve Surface

1шт.

7

82990924

VALVE,11.986mm/11.990mm OD x 85.5mm L, Class A

1шт.

Class Dimension is etched on the Valve Surface

1шт.

8

10839710

DOWEL,M10 x 15.00mm

2шт.

9

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

3шт.

10

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

11

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

12

5193100

PLUG,Hex, M14 x 1.5

1шт.

13

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

14

84544133

PLUG,8mm ID

1шт.

15

13420576

SNAP RING,M16, Int

1шт.

16

11057776

SNAP RING,M19, Int

1шт.

17

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

18

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

19

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.
