Запчасти Case IH MAXXUM 110 (31.114.AP) - VAR - 330800 - POWER TAKE-OFF - OUTPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

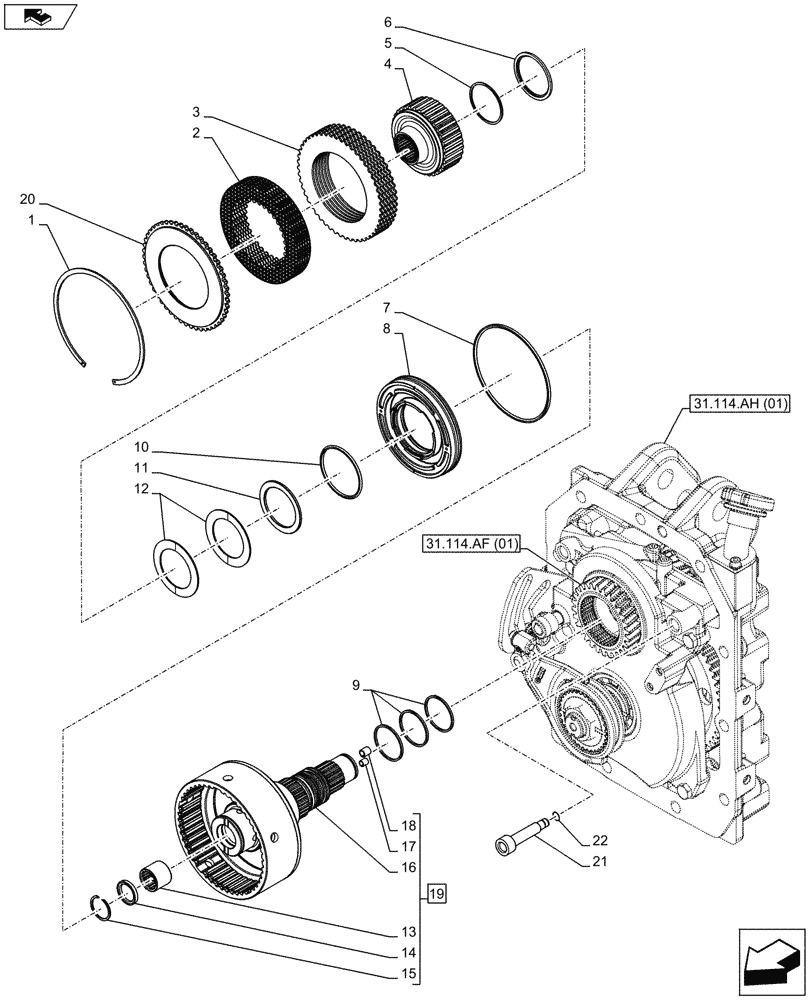

Схема запчастей Case IH MAXXUM 110 - (31.114.AP) - VAR - 330800 - POWER TAKE-OFF - OUTPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF
31.114.af (01)
13
14
2
17
home
8
10
15
1
21
7
18
6
12
22
20
11
16
5
3
9
4
19
31.114.ah (01)

Артикул

Название

Примечание

Количество

1

5162251

CIRCLIP,142.5mm ID

1шт.

2

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

6шт.

3

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

6шт.

4

5198672

HUB,Z32

1шт.

5

5191305

CIRCLIP,54mm ID

1шт.

6

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

7

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

8

5198547

PISTON

1шт.

9

5175983

SEALING RING,46mm ID

3шт.

10

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

11

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

12

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

13

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

14

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

15

5182717

SNAP RING,1.5mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

Driving Shaft, Incl in 19

1шт.

17

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

19

87305531

MAIN SHAFT,26T, 18T, 220mm L

2 Speed, ASSY, Incl 13 - 18

1шт.

20

5198545

CLUTCH PLATE,89mm ID x 152.6mm OD x 7.5mm Thk

1шт.

21

5192537

HYD CONNECTOR,13mm D - 10mm D

1шт.

22

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

Выбрано товаров: 22
