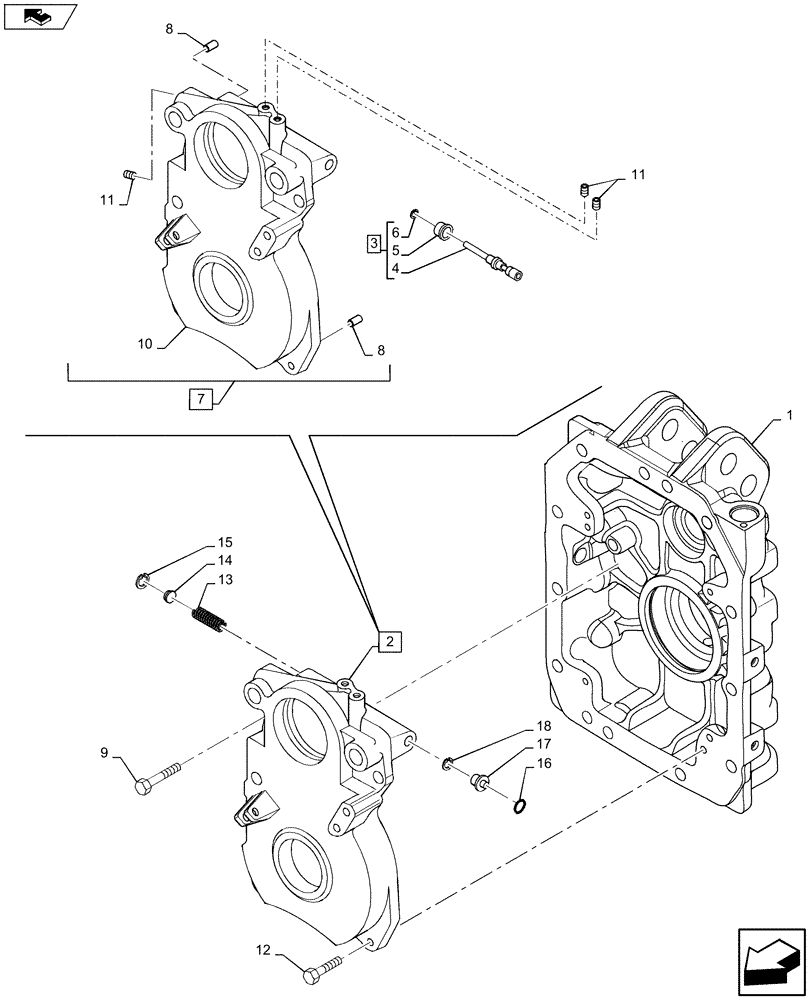

Запчасти Case IH MAXXUM 110 (31.114.AH[01]) - VAR - 330800 - POWER TAKE-OFF - COVERS (31) - IMPLEMENT POWER TAKE OFF

1

47131253

CASING

1шт.

2

47128641

SUPPORT

ASSY Incl 3, 7

1шт.

3

47128616

VALVE

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

5

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

6

13397370

SNAP RING,M8, Int

1шт.

7

47126419

SUPPORT

ASSY, Incl 8, 10, 11

1шт.

8

10839710

DOWEL,M10 x 15.00mm

M10X15

2шт.

9

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

M12X1.25X70 FULL 8.8 DAC DIN

2шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

11

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10X1.25 X 11 STL ZND

3шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

M12X1.25X40 FULL 8.8 DAC DIN

2шт.

13

47123788

SPRING,15mm OD x 87.5mm L

1шт.

14

47127951

CAP COVER

1шт.

15

13420576

SNAP RING,M16, Int

1шт.

16

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1,78X12,42

1шт.

17

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

18

11057776

SNAP RING,M19, Int

19MM BLO

1шт.
