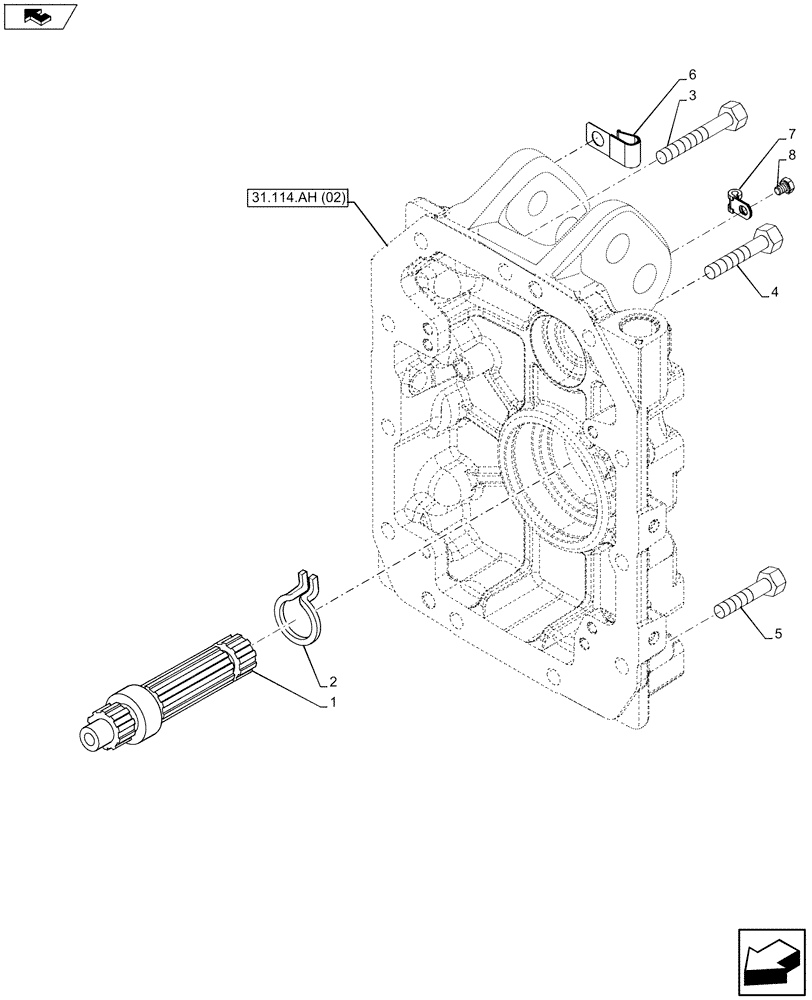

Запчасти Case IH MAXXUM 110 (31.114.AF[02]) - VAR - 330800 - PTO, SHAFT, SENSOR (31) - IMPLEMENT POWER TAKE OFF

1

87308746

PTO SHAFT,21T, 60T, 236.6mm L

1шт.

2

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

3

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

M16X1.5X100 8.8 DAC

8шт.

4

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

M16X1.5X80 8.8 DAC

1шт.

5

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

M16X1.5X55 8.8 DAC

2шт.

6

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

7

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

6MM INSUL M8 BOLT

1шт.

8

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

M8X10 FULL 8.8 DAC

1шт.
