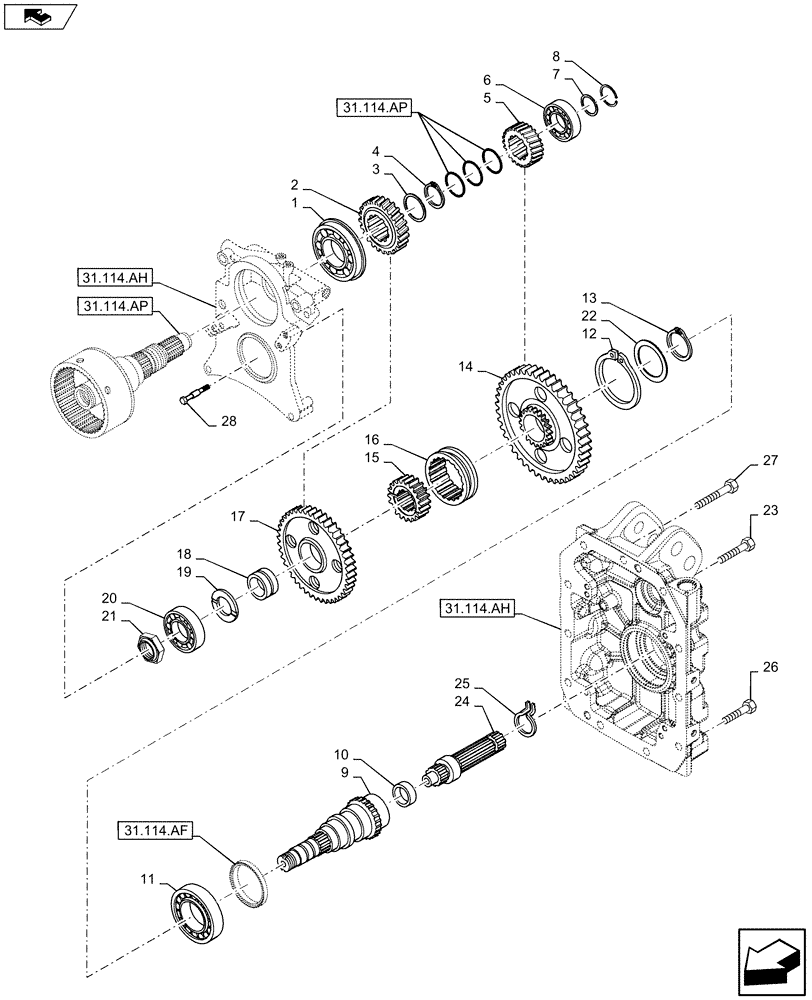

Запчасти Case IH MAXXUM 110 (31.114.AF[01]) - VAR - 330800 - PTO, SHAFT & GEAR (31) - IMPLEMENT POWER TAKE OFF

1

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

2

84306137

GEAR,26T, 28T

1шт.

3

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

4

5138419

SNAP RING,M50

1шт.

5

5197545

GEAR,17T, 40T

1шт.

6

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

8

5154307

SNAP RING,M35

1шт.

9

47131256

DRIVE SHAFT,26T, 12T, 22T

1шт.

10

5198197

SEAL,10.00mm ID x 22.00mm OD x 7.50mm

1шт.

11

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

1шт.

12

11076176

SNAP RING,M125, Int

1шт.

13

47132124

CIRCLIP,M70

1шт.

14

5197553

GEAR,24T, 62T

1шт.

15

5197550

GEAR,26T Internal / 24T External

1шт.

16

5145798

SYNCHRONIZER,24T

ASSY

1шт.

17

84306139

DRIVEN GEAR,24T, 54T

1шт.

18

5149115

BUSHING,49.4mm ID x 60mm OD x 35mm L

1шт.

19

5182629

ANTI-WRAP PLATE

1шт.

20

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

21

5147930

RING NUT,M45 x 1.5

1шт.

22

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

23

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

24

47130743

PTO SHAFT,6T Splines, 182mm L

1шт.

25

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

26

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

1шт.

27

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

1шт.

28

87306972

PIN,19mm OD x 120.5mm L

1шт.
