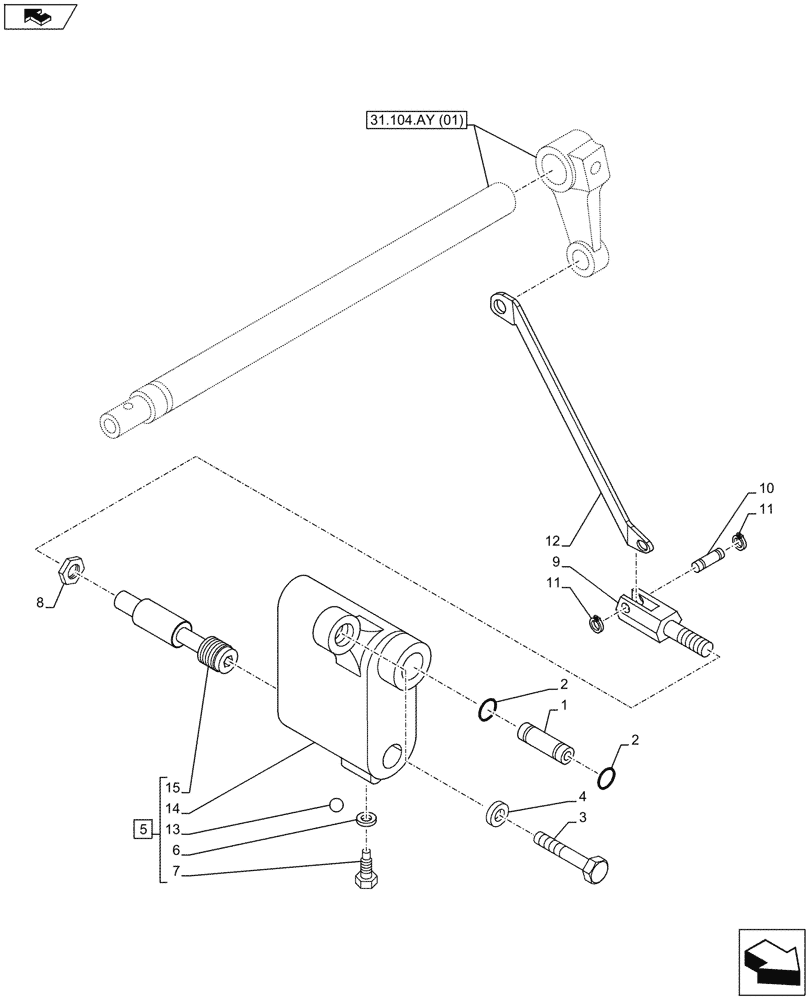

Запчасти Case IH MAXXUM 110 (31.104.AY[02]) - VAR - 332801, 335788, 744740 - POWER TAKE-OFF, LEVER (31) - IMPLEMENT POWER TAKE OFF

1

5192536

HYD CONNECTOR

1шт.

2

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

3

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

4

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

5

47127450

SUPPORT

ASSY Incl 6, 7, 13, 14, 15

1шт.

6

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

7

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

47127789

CLEVIS

1шт.

10

5192675

PIN

1шт.

11

11063876

SPRING CLIP,M5 x 4mm

2шт.

12

47127558

LEVER

1шт.

13

20063470

BALL,7.9mm OD

2шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

15

NSS

NOT SOLD SEPARAT

Lock, Incl in 5

1шт.
