Запчасти Case IH MAXXUM 110 (31.104.AR[03]) - VAR - 390283 - PTO CLUTCH, HYDRAULIC LINE (31) - IMPLEMENT POWER TAKE OFF

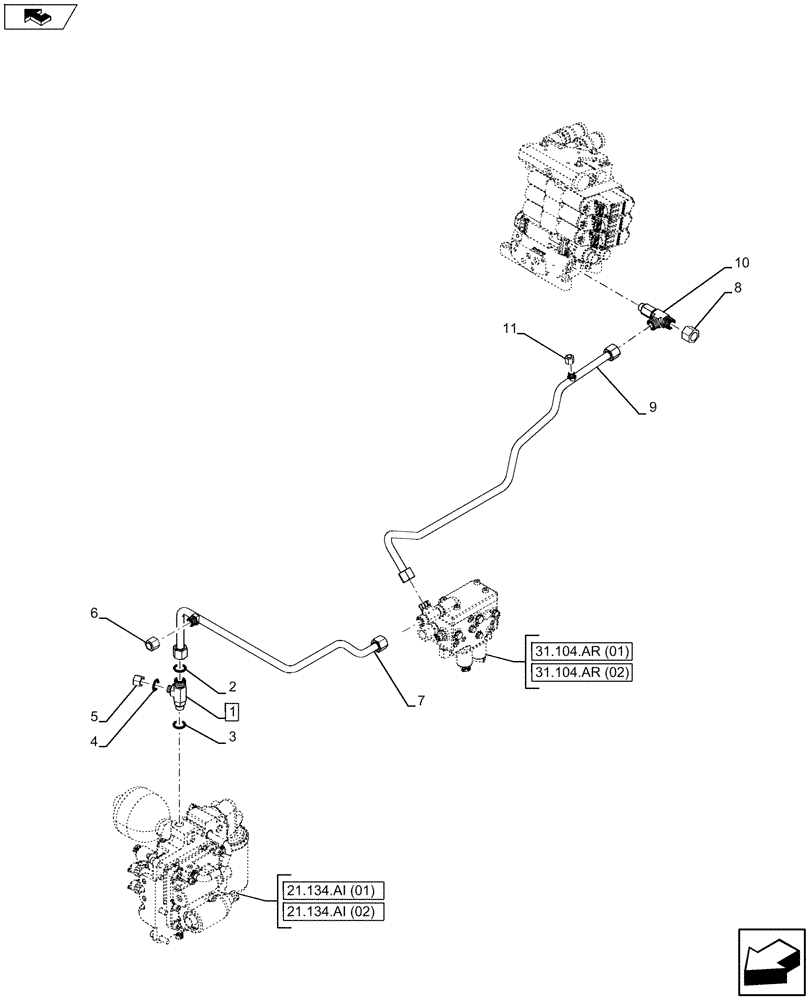

Схема запчастей Case IH MAXXUM 110 - (31.104.AR[03]) - VAR - 390283 - PTO CLUTCH, HYDRAULIC LINE (31) - IMPLEMENT POWER TAKE OFF
11
21.134.ai (01)
9
8
1
31.104.ar (01)
6
5
4
7
31.104.ar (02)
21.134.ai (02)
2
10
3

Артикул

Название

Примечание

Количество

1

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

ASSY, Incl 2 - 4

1шт.

2

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

9625546

CAP,11/16" - 16 ORFS

1шт.

6

9840575

CAP,13/16" - 16 ORFS

1шт.

7

84482664

TUBE

From CVT To Service Block, ASSY, Incl 8

1шт.

8

9840576

CAP,1" - 14 ORFS

1шт.

9

84482662

TUBE

Service Block, ASSY, Incl 10

1шт.

10

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

1шт.

11

87668376

CAP,9/16"-18 Inch THD

1шт.

Выбрано товаров: 11
