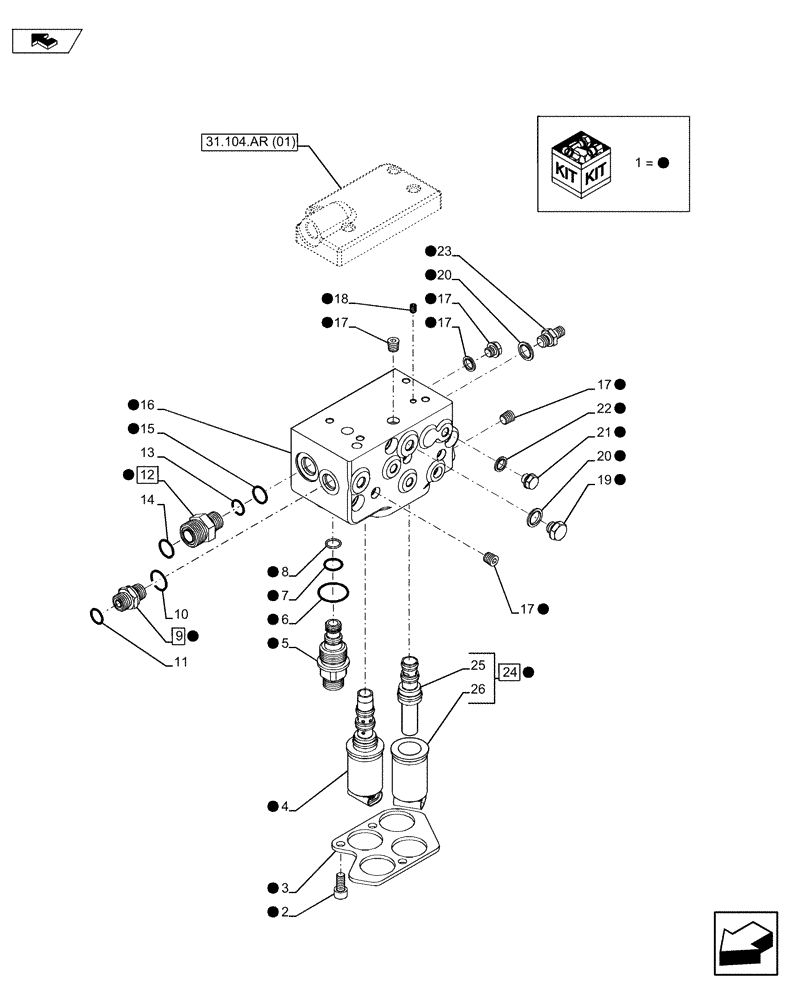

Запчасти Case IH MAXXUM 110 (31.104.AR[02]) - VAR- 390283 - PTO CLUTCH, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

1

84336448

CONTROL VALVE

ASSY, Incl 2 - 25

1шт.

2

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

3

84335655

PLATE

1шт.

4

87739558

SOLENOID VALVE,14W

1шт.

4

87739558R

REMAN-SOLENOID

1шт.

4

87739558C

CORE-SOLENOID

Return Number

1шт.

5

84335657

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2

1шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

7

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

8

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

9

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 10 - 11

1шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

12

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 13 - 14

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

44980053

PIN

1шт.

17

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

18

5171508

RESTRICTOR

1шт.

19

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

20

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

3шт.

21

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

22

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

23

84340724

STUD,M12 x 1.5, M10 x 1.25

1шт.

24

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

ASSY, Incl 25, 26

3шт.

25

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

26

NSS

NOT SOLD SEPARAT

Body, Incl in 24

1шт.
