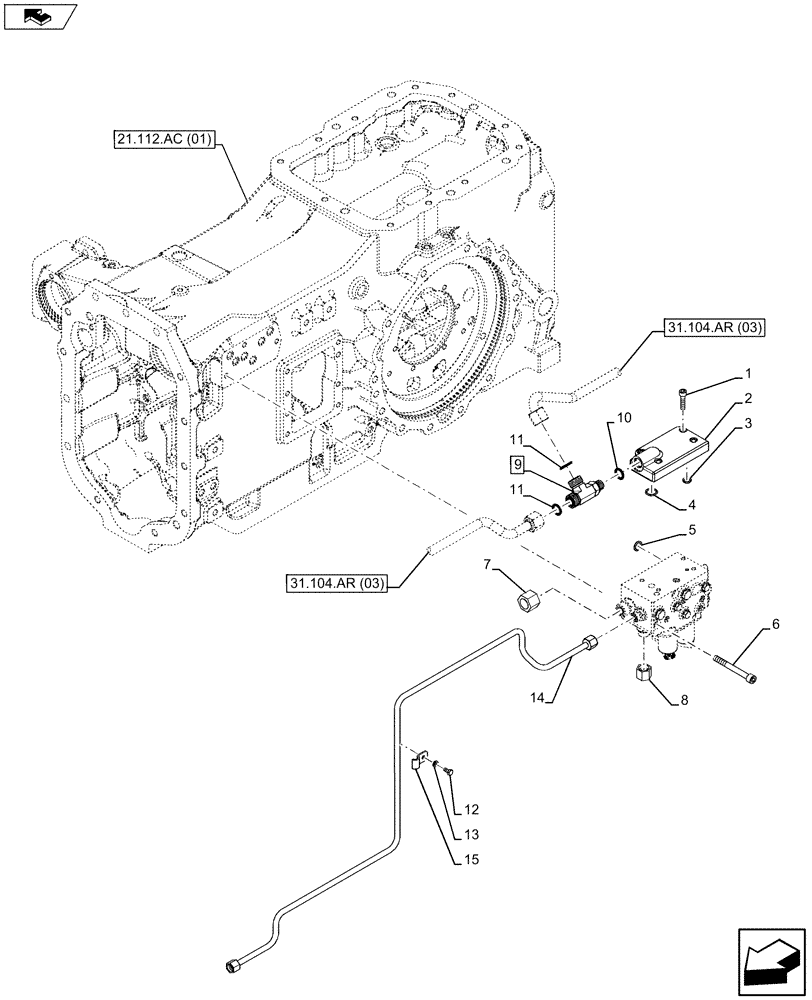

Запчасти Case IH MAXXUM 110 (31.104.AR[01]) - VAR- 390283 - PTO CLUTCH, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

1

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

4шт.

2

5197061

PLATE

1шт.

3

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

122014

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

6шт.

6

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

7

9840576

CAP,1" - 14 ORFS

1шт.

8

9840575

CAP,13/16" - 16 ORFS

1шт.

9

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 10 - 11

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

13

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

14

47445762

TUBE

Front Differential Lock

1шт.

15

84332672

BRACKET

1шт.
