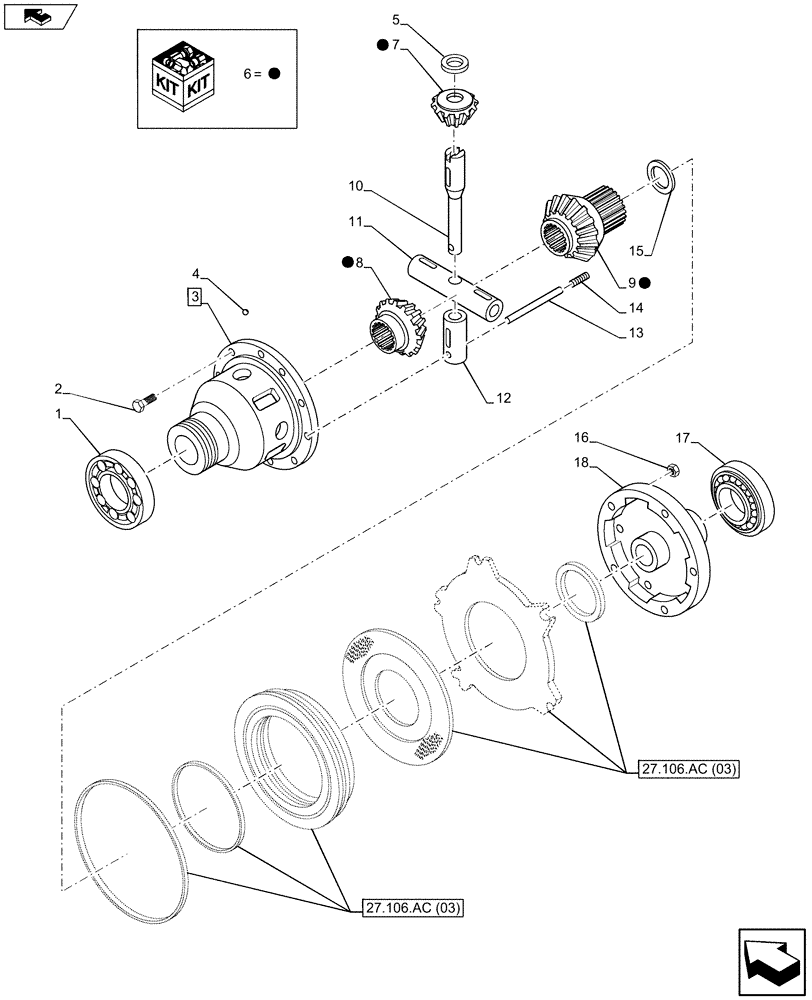

Запчасти Case IH MAXXUM 110 (27.106.AC[02]) - VAR - 332351, 391223 - DIFFERENTIAL GEAR (27) - REAR AXLE SYSTEM

1

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

1шт.

2

5198756

BOLT,Hex, M14 x 1.5 x 90mm

10шт.

3

5191913

CASING

ASSY, Incl 4

1шт.

4

20063460

BALL,7.14mm OD, Gr 100

2шт.

5

5191908

THRUST WASHER,Curved, 28mm ID x 63.5mm OD x 1.47mm Thk

4шт.

6

87372490

DIFFERENTIAL

ASSY, Cast Dents, Incl 7 - 9

1шт.

7

5139597

PINION,12T

Machined Dents

4шт.

7

87325389

PINION,12T

Cast Dents

4шт.

8

5197540

PINION

LH, Machined Dents

1шт.

8

87325422

PINION

LH, Cast Dents

1шт.

9

5198595

PINION

RH, Machined Dents

1шт.

9

87325077

PINION

RH, Cast Dents

1шт.

10

5191915

PIN

1шт.

11

5191914

PIN,28mm OD x 172mm L

1шт.

12

5191916

BUSHING

1шт.

13

14516430

PIN,7mm OD x 55mm L

1шт.

14

13809470

SET SCREW,Hex Soc, M10 x 16mm, Flat Pt

1шт.

15

5197537

THRUST WASHER,2.700mm

1шт.

15

5197702

SHIM,2.750mm

1шт.

15

5197703

SHIM,2.800mm

1шт.

15

5197704

SHIM,2.850mm

1шт.

15

5197705

SHIM,2.900mm

1шт.

15

5197706

SHIM,2.950mm

1шт.

15

5197707

SHIM,3.000mm

1шт.

15

5197708

SHIM,3.050mm

1шт.

15

5197709

SHIM,3.100mm

1шт.

15

5197710

SHIM,3.150mm

1шт.

15

5197711

SHIM,3.200mm

1шт.

15

5197712

SHIM,3.250mm

1шт.

15

5197713

SHIM,3.300mm

1шт.

15

5197714

SHIM,3.350mm

1шт.

15

5197715

SHIM,3.400mm

1шт.

15

5197716

SHIM,3.450mm

1шт.

15

5197717

SHIM,3.500mm

1шт.

16

13598221

NUT,M14 x 1.5

10шт.

17

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

1шт.

18

5198594

COVER

1шт.
