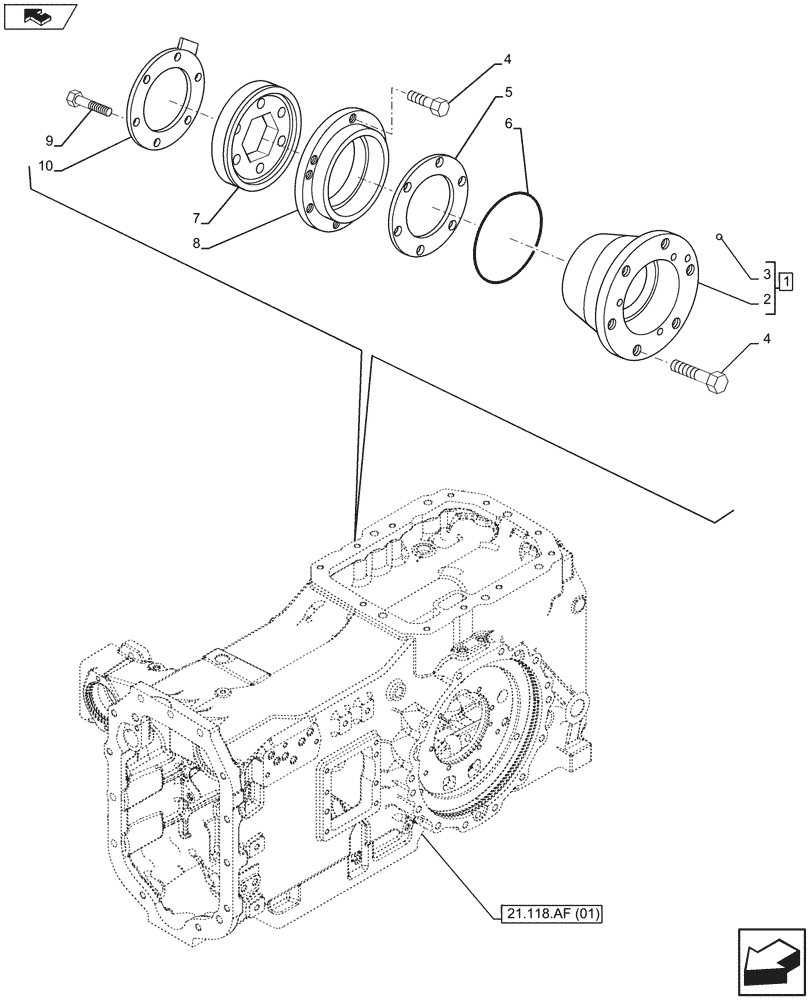

Запчасти Case IH MAXXUM 110 (27.106.AC[01]) - VAR - 332351, 391223 - DIFFERENTIAL, SUPPORT (27) - REAR AXLE SYSTEM

1

5191883

SUPPORT

ASSY, Incl 2 - 3

1шт.

2

5191882

SUPPORT

LH

1шт.

3

20063460

BALL,7.14mm OD, Gr 100

2шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

5

5191878

SHIM,0.150mm Thk

1шт.

5

5191880

SHIM,0.200mm Thk

1шт.

5

5191881

SHIM,0.500mm Thk

1шт.

6

14461981

O-RING,5.487" ID x 0.103" Width

1шт.

7

5198628

SUPPORT

RH

1шт.

8

5198598

RING NUT,Lock, M125 x 2

1шт.

9

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

5198626

RING

1шт.
