(27.100.AI[05]) - VAR - 390283 - REAR AXLE, HOUSING, TUBE

Запчасти Case IH MAXXUM 110 (27.100.AI[05]) - VAR - 390283 - REAR AXLE, HOUSING, TUBE (27) - REAR AXLE SYSTEM

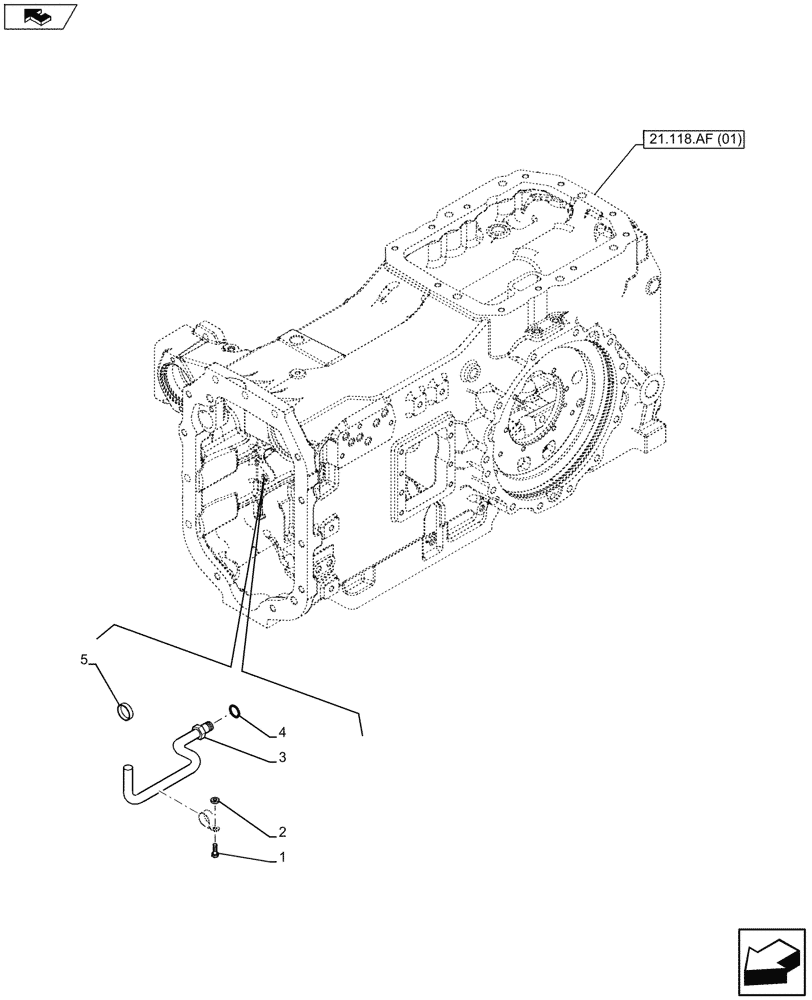

Схема запчастей Case IH MAXXUM 110 - (27.100.AI[05]) - VAR - 390283 - REAR AXLE, HOUSING, TUBE (27) - REAR AXLE SYSTEM
home
2
1
5
4
3
21.118.af (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

3

47136932

TUBE

1шт.

4

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

5

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

Выбрано товаров: 5
